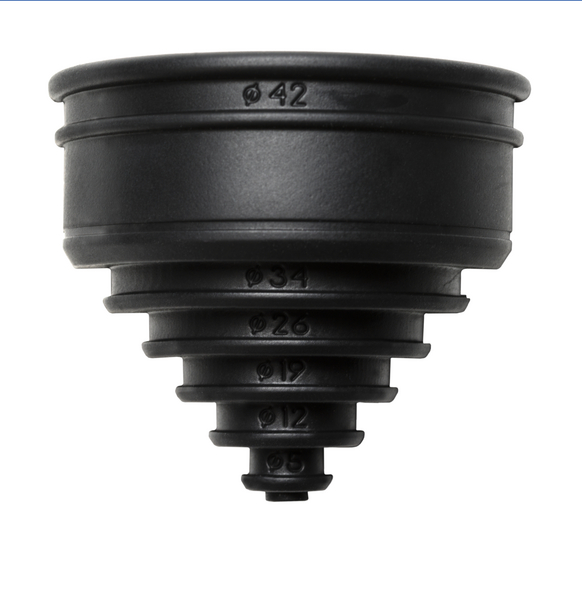

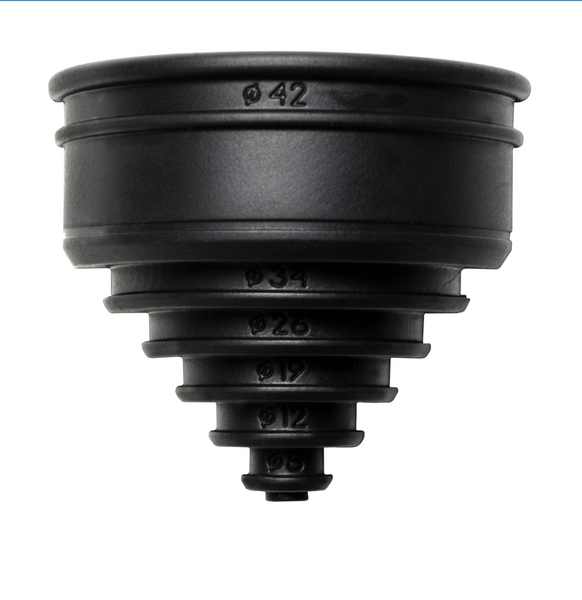

Accessory, HelaGuard, black, 10pcs. (REC0500)
Art.-Nr. 166-90236 | REC0500-TPE-BK |

Copied
Flexible rubber material easily slips over end of conduit to seal out dust and debris.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Thermoplastic Elastomer (TPE)
    PART DESCRIPTION REC0500-TPE-BK
    Pack Cont. 10pcs.
    Package Content packed in pack
    Type REC0500
    Variant Endcap
    Fits Conduit Size (Imperial) 1/2 "
    Fits Conduit Size (Metric) 21mm
    Length (L) 38.3mm
    Nominal ⌀ 0.5"
    Nominal ⌀ 21mm
    Outside ⌀ (OD) 28.4mm
    Outside ⌀ (OD) 1.12"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -50 °C to +120 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026484938
    Packaging 1 - Type pack
    UNSPSC Key 39131708
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
