Grommet strip, T=10.0mm, W=14mm, W2=10.7mm, H=6.6mm, H2=4.5mm, -40 °C to +85 °C, natural, 100pcs.

Art.-Nr. 251-06019

| TG-107-PA6-NA

|

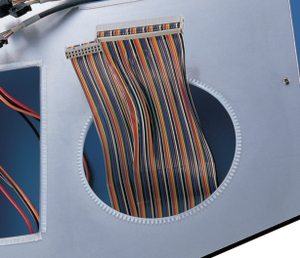

HellermannTyton’s (JIZAI BUSH)grommet is a unique, continuous wire protection product which fits easily in all shapes and sizes of holes without the aid of tools or adhesives.
Since Flexiform can be cut to the right length with scissors, it eliminates waste, helping keep grommet stock to a minimum.

Add to watchlist

Request quote

Downloads

More products in this product group:

Grommet (JIZAI BUSH)

Base Data

Application	Strong to vibration, excellent abrasion resistance, great for protecting wires of any kind
Colour	Natural (NA)
Material	Polyamide 6 (PA6)
PART DESCRIPTION	TG-107-PA6-NA
Package Content	100pcs.
Package Content packed in	bag
Product Family	Edge protection
Product Group	Grommet (JIZAI BUSH)
Type	TG-107

Product Dimensions

Height (H)	6.6mm
Height (H2)	4.5mm
Length (L)	324mm
Panel Thickness	10.0mm
Wall (WT)	2.1mm
Width (W)	14mm
Width (W2)	10.7mm
for Panel Thickness min - max	- 10

Specifications

Flammability	UL 94 V2
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	JP
GTIN-13 / EAN	4944387933611

More Information

ETIM 7.0 Key	EC001937
ETIM 8.0 Key	EC001937
ETIM 9.0 Key	EC001937
