Electrical tape, L=20m, W=19mm, T=0.15mm, mix, 10 pcs.
Art.-Nr. 710-00165 | HTAPE-FLEX15MX19x20-PVC-MIX |

Copied

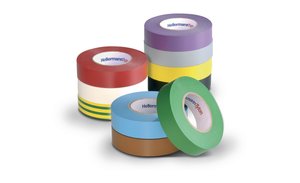

HelaTape Flex 15 – Vinyl Electrical Tapes.

    • Vinyl electrical tape in many different colours
    • Used for insulation, protection, fixing, maintenance, colour coding and more
    • Good resistance to abrasion, sunlight, moisture, chemicals and varying weather conditions
    • Highly flexible with outstanding adhesion performance
    • Harnessing of wires and cables
    • Suitable for mechanical and electrical applications up to 1 kV
    • VDE approved according to IEC 60454-3-1-6/F-PVCP/90
    • Flame retardant according to IEC 60454-2
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primary electrical insulation for all wire and cable splices up to 1 kV.
    Protective jacketing for low, medium and high voltage splices.
    Wrapping of wire harnesses and cables.
    Used for indoor and outdoor applications.
    Colour Red (RD), Blue (BU), White (WH), Black (BK), Green-Yellow (GNYE)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION HTAPE-FLEX15MX19x20-PVC-MIX
    Package Content 20m
    Package Content packed in pack
    Product Family HelaTape Flex 15
    Product Group Vinyl Electrical Tapes –
    Commercial Grade Vinyl Electrical Tape
    Short Description HELATAPE-FLEX15-19mmx20m
    Type HTAPE-FLEX15MX19x20
    Weight/Unit 0.078kg
    Length (L) 20m
    Thickness (T) 0.15mm
    Width (W) 19mm
    Adhesion to Backing 2.0N/10 mm
    Adhesion to Steel 2.2N/10 mm
    Breaking Strength 28N/10 mm
    Dielectric Strength 45kV/mm
    ELV compliant (Article 4 - 2) YES
    Elongation at break (min.) 200%
    Hazardous Goods No
    Insulating (Yes/No) Yes
    Operating Temperature -10 °C to +90 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Shelf Life 5 years
    Specifications
    Specifications VDE
    Suitable for high voltage (Yes/No) No
    Tensile Strength 19.5N/mm²
    Country of Origin CN
    Customs Number 39191012
    GTIN-13 / EAN 4031026550541
    Packaging 1 - Qty 10
    Packaging 1 - Type pack
    Packaging 1 - Weight (kg) 780kg
    Packaging 3 - Height (m) 0.148m
    Packaging 3 - Length (m) 0.4m
    Packaging 3 - Qty 100
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0234m³
    Packaging 3 - Weight (kg) 8.05kg
    Packaging 3 - Width (m) 0.396m
    Packaging 4 - Height (m) 1.18m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 4200
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.133m³
    Packaging 4 - Weight (kg) 359.1kg
    Packaging 4 - Width (m) 0.8m
    Storage Temperature +23 °C
    Storage conditions 65% relative humidity.
    ETIM 7.0 Key EC000128
    ETIM 8.0 Key EC000128
    ETIM 9.0 Key EC000128
    Electrical Tape HelaTape Electrical Tape HelaTape

    Electrical Tape HelaTape

    With HelaTape HellermannTyton provides a wide range of PVC- and rubber-based electrical tapes for sealing, insulation and bundling of cable and conduits.
