MCDN with 4 x IP9 ports
Art.-Nr. 857-02727 | MCDN-1C-1-SN |

Copied
MCDN 4 X IP9 + 1 Bayonet (closed)
MCDN 4 X IP9 + 1 Bayonet (tray closed)

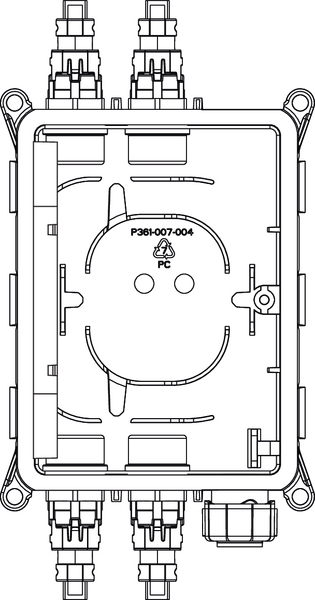

MCDN 4 X IP9 + 1 Bayonet (tray open)
MCDN 4 X IP9 + 1 Bayonet (closed with duct)
MCDN 4 X IP9 + 1 Bayonet (tray closed with duct)
MCDN 4 X IP9 + 1 Bayonet (tray open with duct)
MCDN 4 X IP9 + 1 Bayonet (front, closed)
MCDN 4 X IP9 + 1 Bayonet (side, closed)
MCDN 4 X IP9 + 1 Bayonet (top, closed)
MCDN 4 X IP9 + 1 Bayonet (back, closed)
MCDN 4 X IP9 + 1 Bayonet (side, closed)
MCDN 4 X IP9 + 1 Bayonet (bottom, closed)
MCDN 4 X IP9 + 1 Bayonet (front, tray closed)

    • 4 x IP9 SN Duplex Ports with tethered dust caps
    • Compression Port supplied with 1 x 4.0 – 6.0mm seal
    • IP68 sealing on all ports
    • Splice tray for maximum of 12 x 3A fibre splices
    • Gortex breather to prevent moisture condensation
    • Cable retaining clips are incorporated into the box
    • Two slotted fixings for perfect horizontal alignment
    • Enforces IEC 6079-2-50 B6_a2 (G.657.A2) fibre minimum bend radius of 7.5mm
    • Manufactured from UV stable PC/ABS
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Content MCDN-1C (4 x IP9 + 1 x Bayonet Port)
    3A Splice Tray x 1
    IP9 SN Adaptor x 4
    4.0 - 6.0mm Cable/Duct Seal x 1
    Material Polycarbonate, UV-stabilised (PCUV)
    PART DESCRIPTION MCDN-1C-1-SN
    Port count 5
    Product Family Fibre Optic External Enclosure
    Product Group MCDN - Micro Compact Distribution Node
    Qty Trays 1
    Short Description MCDN with 4 x IP9 ports
    Technical Description The MDCN-1C is a compact hardened connector enclosure which offers IP68 environmental protection. The enclosure has four IP9 ports and a single compression port at the base of the unit. The IP9 ports are fitted with a SN duplex adaptor to allow for BiDi or duplex connections. The incoming compression port is supplied with 4.0 – 6.0mm cable/duct seal. The enclosure is supplied with a fibre splice tray which will manage a maximum of 12 x 3A 60mm splices for use where pre-connectorised fibre units cannot be deployed and the base has moulded retaining clips for improved fibre management. The enclosure is manufactured from UV stable PC/ABS and is supplied with a Gortex breather eliminating any internal moisture build up.
    Type MCDN-1C-1-SN
    Depth (D) 35mm
    Height (H) 151mm
    Width (W) 97mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 5022660193613
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
