MDU S3 Connectorised with 2 SC-B MKII ANT trays + 2 CTR - 24 LC/APC connections
Specific to German NE4 In-Building Network
Art.-Nr. 857-03104 | MDU-S3C-C02D3-10A |

Copied
MDU - S3C Connectorised closure.
MDU - S3 shown with lid and optional lock.
MDU - S3 shown with loop through seals.
MDU - S3 (front view)
MDU - S3 (side view)

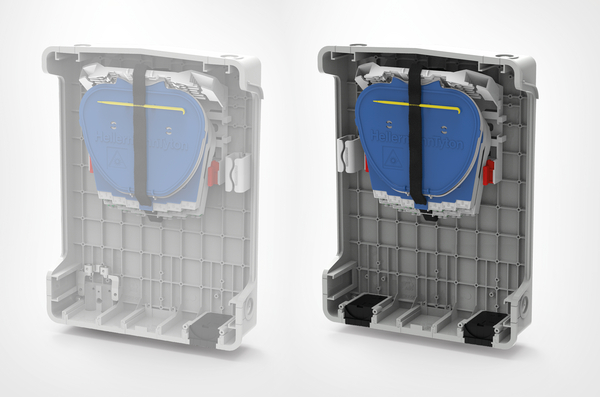

MDU - S3C shown in base view.
MDU - S3C closure.
MDU - S3 (rear view)

    • Up to 24 connections
    • Maximum 48 Fibre Splices
    • Small Angled IR Fibre Management System (FMS)
    • 2 SC-B ANT MKII trays
    • 2 Connectorised trays (CTR) with ANT Splice Bridges and 6 LC/APC DX adaptors
    • Horizontal Splice Orientation for 2 FMS cable entry points
    • 2 Multi Drop Seals (left and right)
    • Optional MDU Accessories
    • IP54/IK08
    • UV Stable / UL-94 V0 Rating
    • Used in conjunction with MDU-S3C-C02D2-10A (German N3 DP)
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Designed for deployment within the last mile of the FTTx network, this HellermannTyton MDU S3 Connectorised enclosure can be used for Point to Point (P2P) or Point to Multi Point (P2MP) requirements with the addition of PLC splitters, bare end or connectorised, pigtails and adaptors.
    Connectivity within the last-mile (LC or SC style connectors) is often the operator’s preferred presentation and makes day-one customer connection and day-two network trouble shooting and support more straightforward. Connector counts from 8 to 64 are available with several styles of connector mounting options possible.
    Colour Light Grey (LTGY)
    Connector Colour Green (GN)
    Content MDU S3 enclosure
    Centered Small Angled IR Fibre Management System (FMS)
    2 x Fibre Retention Blocks / FMS Entry Points
    2 x SC-B MKII Splice Trays (ANT)
    2 x Connectorised Trays (ANT) with 6 x LC Duplex per tray
    1 x Lateral Patch Cord Manager (left)
    2 x S3 Multi Drop Seals (24 ports x 5mm)
    1 x Wall Mounting Kit
    PART DESCRIPTION MDU-S3C-C02D3-10A
    Product Family Fibre Optic External/Internal Enclosure
    Product Group S3 Series MDU/MBU Enclosures
    Qty Trays 4
    Short Description MDU S3 Connectorised with 2 SC-B MKII ANT trays + 2 CTR - 24 LC/APC connections
    Specific to German NE4 In-Building Network
    Splice Capacity 48
    Technical Description The MDU S3 enclosure is a modular solution that can be configured in a number of ways to suit the deployment of a specific indoor/outdoor project or installation.

    The 340 x 247 x 76mm (H x W x D) enclosure is manufactured in light grey (RAL 7035) ABS (Acrylonitrile Butadiene Styrene): the S3 is UV stable with an UL-94 V0, IP54 and IK08 rating.
    The MDU S3 cover can be customised with a moulded or labelled customer logo.

    Designed with the small angled HellermannTyton IR Fibre Management System (FMS), the S3 C (Connectorised) accommodates 2 SC-B IR MKII splice trays and 2 Connectorised trays (CTR) giving a maximum of 48 ANT fibre splices and 3 PLC splitters.

    The position of the FMS in the centre allows for horizontal splices and the additional lateral patch cord manager makes the fibre routing easier.
    The 2 red retaining blocks guide the fibre elements onto the FMS and their foam pads can be cut through to accommodate a range of fibre counts.

    Two multi drop seals are pre-fitted on left and right ports of the base.

    An extensive range of optional accessories is available upon request and include lock, multi-drop seals (24 x 5mm drops), M20 cable glands (up to 14mm), loop through anchor kit, drop cable anchor brackets, SC or coloured splice trays, splitter holders for trays, internal or external loop storage baskets.
    Type MDU-S3C-C02D3-10A
    Variant Indoor/Outdoor FTTx Enclosures
    Depth (D) 76mm
    Height (H) 340mm
    Width (W) 247mm
    IP-Rating IP54
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026791821
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC001124
    ETIM 9.0 Key EC001124
