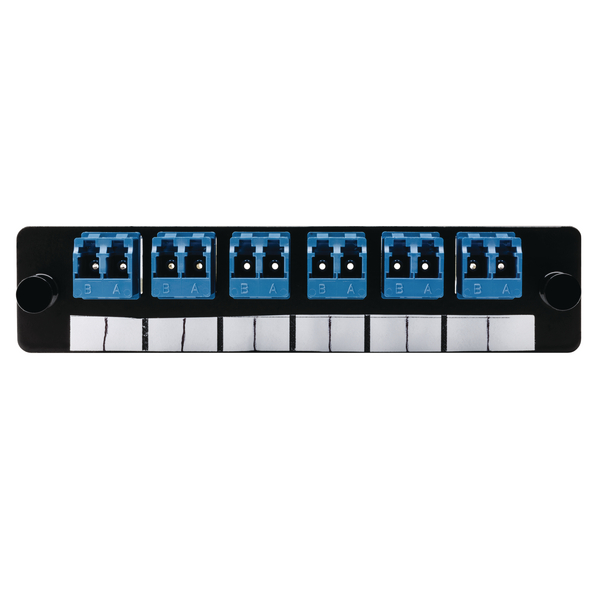

LC Single Mode Panel
Art.-Nr. 855-04225 | FAP6DSMLC Details

  • Sliding Panels for easy access when terminating
  • On board Fibre Optic Management (FOM)
  • Multiple cable entry options and securing points
  • Available in Quad (96 fibre) and Duplex (48 fibre)
  • Also available in multimode
  • Supplied with Rack Snap mounting fixings
Show more

Request your individual offer now

Colour Blue (BU)
Connector Type LC
Description ADAPTER PANEL-12 LC SM BLUE
Pack Cont. 1pc.
PART DESCRIPTION FAP6DSMLC
Performance Category Single Mode
Port count 12
Product Family LC Single Mode Panel
Product Group LC Fibre Panels
Technical Description The LC Single Mode Fibre Panel presents up to a maximum of 96 LC fibres (using LC Quad Adaptors) in 1U of space. The 1U sliding drawer can be locked into position using two simple to operate catches. When fully extended the drawer is designed to lower to 45° giving access to the panel. The drawer can also be locked to a lower maximum of 10°, providing the perfect working platform during installation and maintenance, by sliding the drawer sideways. The rear drawer offers a number of cable options including 4 x 10mm and 2 x 20mm gland holes and has a removable section in the centre for specialist cables and patch leads. In addition the base of the tray has cable securing points and cable management holes for securing Fibre Optic Management (FOM). Adjustable mounting ears allow the panel to be positioned within the rack or frame.
Depth (D) 200mm
Height (H) 29.0mm
Length (L) 129.3mm
Width (W) 28.96mm
Optical Performance Singlemode
Country of Origin GB
Dimensions W x H x D 28.96 mm x 29.0 mm x 200 mm
ETIM 7.0 Key EC000034
ETIM 8.0 Key EC000034
ETIM 9.0 Key EC000034
UNSPSC Key 43223323
