30/06/2025

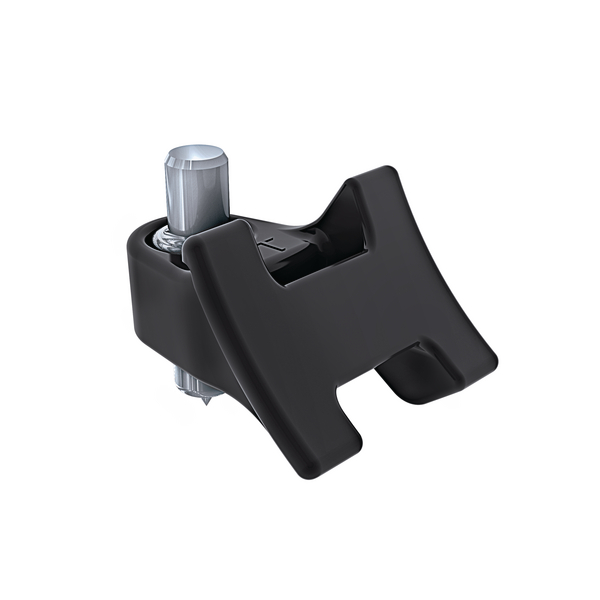

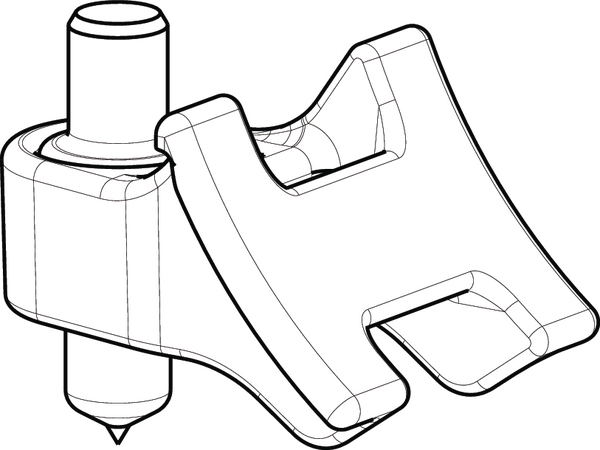

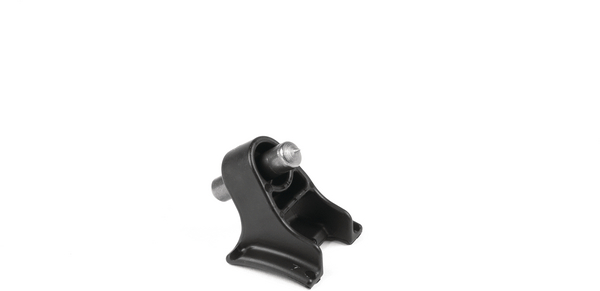

Cable tie mount for stud, Wmax=13.0mm, ⌀6.0 mm, black, 500pcs.
Art.-Nr. 151-00146 | WSM6-PA66HIRHSW-BK |

Copied
When used in conjunction with a cable tie, the Weld Stud Mount significantly reduces time and labor, and eliminates the need for multiple sized P-clamps, nuts, and bolts.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Stud Mount
    Material Polyamide 6.6, high impact modified, heat and UV-resistant (PA66HIRHSW)
    PART DESCRIPTION WSM6-PA66HIRHSW-BK
    Pack Cont. 500pcs.
    Package Content packed in pack
    Type WSM6

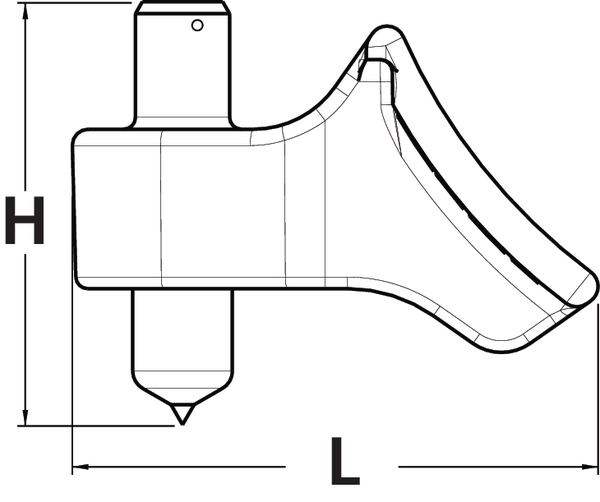

    Height (H) 27.0mm
    Length (L) 33.5mm
    Strap Width max. (G) 0.51"
    Strap Width max. (G) 13.0mm
    Stud ⌀ 0.24"
    Stud ⌀ 6.0 mm
    UV-Stabilised Yes
    Weight/Unit 0.01kg
    Width (W) 27.2mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026701950
    Packaging 1 - Height (m) 0.12m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.009m³
    Packaging 1 - Weight (kg) 5.0kg
    Packaging 1 - Width (m) 0.25m
    Packaging 2 - Height (m) 0.216m
    Packaging 2 - Length (m) 0.3048m
    Packaging 2 - Qty 500
    Packaging 2 - Type carton
    Packaging 2 - Volume (m³) 0.0176m³
    Packaging 2 - Weight (kg) 5.018kg
    Packaging 2 - Width (m) 0.267m
    Packaging 3 - Height (m) 0.168m
    Packaging 3 - Length (m) 0.260349999999999m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0092m³
    Packaging 3 - Weight (kg) 6.03kg
    Packaging 3 - Width (m) 0.209549999999999m
    Packaging 4 - Qty 66000
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
