GigaDuct Hardware, Under Floor Kit, Long
Art.-Nr. 181-00430
| LGA-UFMD
|
Copied
- Variety of mounting options to support different installation environments
- High quality steel fabrications
- Mounting brackets to support underfloor, basket, ladder, threaded rod and wall installations
Request your individual offer now
Request quote
More products in this product group:
| Application | To support the installation of GigaDuct Fibre Raceway HellermannTyton offers a comprehensive range of fixtures and fittings which give flexible mounting options suitable for most installation environments. |
| Colour | Zinc-plated Metal (BV) |

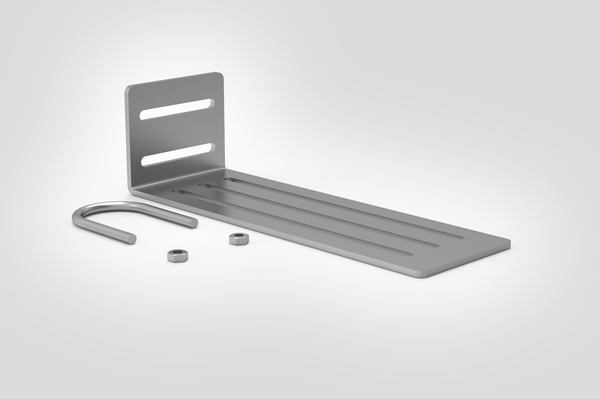

| Description | Under Floor Mounting Kit with 50mm M6 U Bolt |
| Material | Zinc plated (ZN) |
| PART DESCRIPTION | LGA-UFMD |
| Package Content | 1pc. |
| Package Content packed in | bag |
| Product Family | Hardware - UFM |
| Product Group | GigaDuct Supporting Hardware |
| Short Description | GigaDuct Hardware, Under Floor Kit, Long |
| Technical Description |

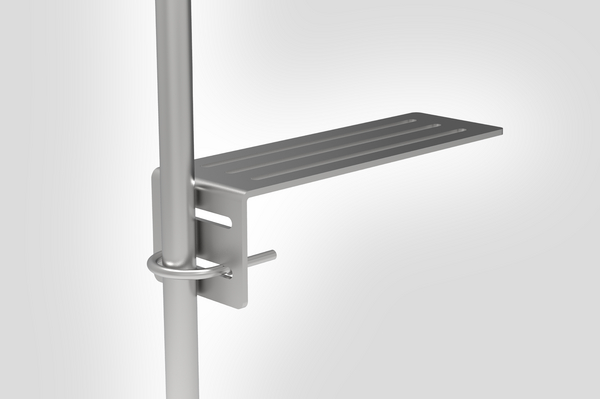

The Underfloor Mounting Kit is used in conjunction with the Short Universal Bracket to provide support to the ducting system when floor mounted. The brackets should be fitted at intervals of 1m - 1.5m to ensure adequate support is provided for the system. The mounting kit is manufactured from zinc coated passivated mild steel. |
| Type | LGA-UFMD |
