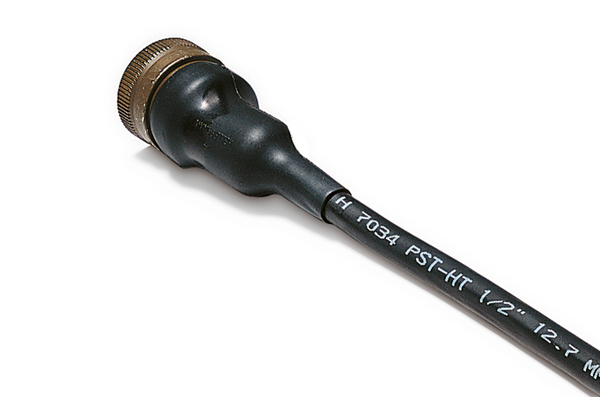

Heat Shrinkable Tubing 2:1 (6.4/3.2) black
Art.-Nr. 342-30640
| PST-HT-6.4/3.2-POA-BK
|
Copied
- Light weight, thin-walled, very flexible tubing
- Use when weight is a key factor
- Resistant to diesel, aviation and hydraulic fluids
- Suitable for aerospace applications like helicopters
- VG approved shrink tubing
Show more
Show less
Request quote
More products in this product group:
| Application |
PST-HT is used for long-term protection of cables and wire harnesses in military equipment, motor sports, and aviation. |
| Colour | Black (BK) |
| Elongation At Heat Aging | 350% |
| Heat Shock Tensile Strength | 14 |
| Material | Elastomer, cross-linked (POA) |
| PART DESCRIPTION | PST-HT-6.4/3.2-POA-BK |
| Package Content | 300m |
| Package Content packed in | meter |
| Product Family | PST-HT - light weight |
| Product Group | Heat Shrinkable Tubing 2:1 - Elastomer |
| Short Description | Heat Shrinkable Tubing 2:1 (6.4/3.2) black |
| Shrink Ratio | 2:1 |
| Size | 1/4" |
| Type | PST-HT-6.4/3.2 |
| Variant | Thin-Wall |
| Weight/Unit | 0.00992kg |
| With inner glue (Yes/No) | No |
| Designation as per VG-Norm | VG 95343 T05 D 015 A |
| Dielectric Strength | 20kV/mm |
| Dielectric Strength test method | IEC 684 P2 |
| ELV compliant (Article 4 - 2) | Yes |
| Elongation at break (min.) | 450% |
| Hazardous Goods | No |
| Min. Shrink Temperature - °C | +135 °C |
| Nato number | 5970-12-307-8004 |
| Operating Temperature | -75 °C to +150 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Specifications | DEF STAN 59-97/3, NF F 00-608, VG 95343-5:2016-10 |
| Tensile Strength | 17MPa |
| Country of Origin | NL |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026150383 |
| Packaging 1 - Height (m) | 0.395m |
| Packaging 1 - Length (m) | 0.245m |
| Packaging 1 - Qty | 300 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.038226125m³ |
| Packaging 1 - Weight (kg) | 2.976kg |
| Packaging 1 - Width (m) | 0.395m |
| Packaging 3 - Height (m) | 0.4m |
| Packaging 3 - Length (m) | 0.4m |
| Packaging 3 - Qty | 300 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.04m³ |
| Packaging 3 - Weight (kg) | 3.476kg |
| Packaging 3 - Width (m) | 0.25m |
| Packaging 4 - Height (m) | 1.144m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 7200 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.098m³ |
| Packaging 4 - Weight (kg) | 105.424kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 300.0m |
