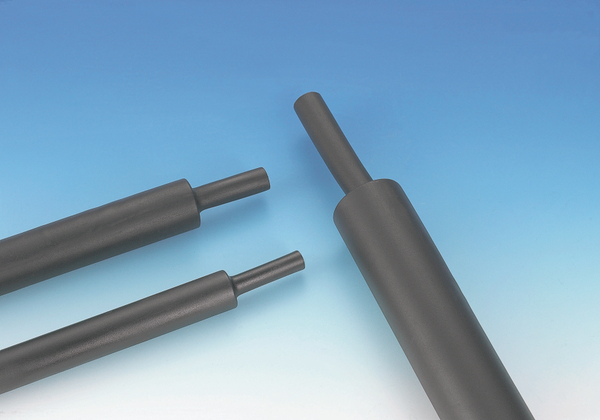

Heat shrinkable tubing 4:1 - flexible
Art.-Nr. 309-00003
| TFN41-38.1/9.5-PO-X-BK
|
Copied
- Thin wall, very flexible polyolefin tubing
- Few sizes cover a wide range of diameters allowing reduced inventory
- Fast shrinking and low shrink temperature
- Flame-retardant
- Shrink ratio 4:1
Show more
Show less
Request quote
More products in this product group:
| Application | If higher fire protection is a requirement heat shrinkable tubing TF41 is a good choice. It is used for protection, insulation and identification wires, cables and light duty harnesses. |
| Behaviour At Low Temperature | not cracking |
| Behaviour at Heat Shock | not fluid, not dripping, not cracking |
| Colour | Black (BK) |
| Elongation At Heat Aging | 420% |
| Heat Aging Test | 168h/175°C |
| Heat Shock Test | 4h/250°C |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | TFN41-38.1/9.5-PO-X-BK |
| Package Content | 30m |
| Package Content packed in | reel |
| Product Family | TF41 |
| Product Group | Heat shrinkable tubing 4:1 - flexible |
| Shrink Ratio | 4:1 |
| Type | TFN41-38.1/9.5 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
| Dielectric Strength | 20kV/mm |
| Dielectric Strength test method | ASTM D876 |
| Elongation at break (min.) | 400% |
| Halogen-free | No |
| Min. Shrink Temperature - °C | +110 °C |
| Operating Temperature | -55 °C to +135 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Specifications | C22.2 no. 198.1-06, UL 224 |
| Tensile Strength | 14MPa |
| UL File link | Link Link |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E143529 |
| Water Absorption | 0.25% |
