Right-Angle Shapes, MIL style


Art.-Nr. 411-01020

| 1101-4-G-PO-X-BK

 |

Copied
1108-4 supplied / fully recovered.
a: Expanded form (supplied)
b: Fully recovered form (after heating)

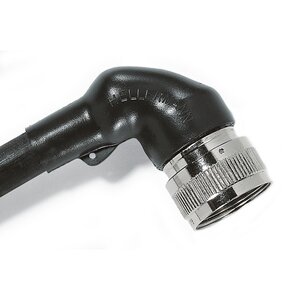

Space saving right-angle shapes used here in a military application.

    • Used in conjunction with a circular grooved adaptor for strain relief
    Add to watchlist
    Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1101-4-G-PO-X-BK
    Package Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 1100 Series, with rib
    Product Group Right-Angle Shapes, MIL style
    Type 1101-4-G
    UV-Stabilised No
    Variant For plug
    Weight/Unit 0.014kg
    ⌀H max. b 27.9mm
    ⌀H min. a 42.6mm
    ⌀J max. b 9.7mm
    ⌀J min. a 42.6mm
    Angle 90
    Flexibility semi rigid
    For Object Outside Diameter 30.84-39.66 mm
    HW ± 20 % 2mm
    JW ± 30 % 2mm
    M nom. 27.9mm
    P ± 10 % 53.3mm
    R ± 10 % 43.2mm
    S nom. 15.7mm
    T ± 20 % 1.7mm
    Tube Shape Angle
    V max. 3.3mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-99-934-6509
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 15MPa
    Country of Origin GB
    GTIN-13 / EAN 5022660407239
    Packaging 1 - Height (m) 0.050m
    Packaging 1 - Length (m) 0.200m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0012m³
    Packaging 1 - Weight (kg) 0.014kg
    Packaging 1 - Width (m) 0.120m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
