Low Profile Transition Boots : 12273162-310

Helashrink 412H Series, side breakoutArticle number: 422-40215

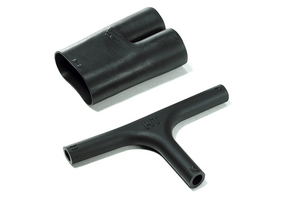

412H622-625 Series supplied / fully recovered.

Features

  • Connector cable strain relief
  • Used with circular adaptors

Certifications & Approvals

Application

Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications

Application Tool H6100
Colour Black (BK)
Pack Cont. 5pcs.
Package Quantity per bag
PART DESCRIPTION 12273162-310-PO-X-BK
Product Family Helashrink 412H Series, side breakout
Product Group Low Profile Transition Boots
Shrink Ratio 3:1
Variant For 2-core cables
Flexibility semi rigid

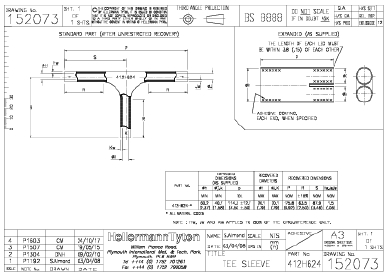

HO/JO/KO ± 10% 63.5mm
P nom. 175.7mm
P ± 10 % 175.7mm
R/S nom. 87.8mm
W nom. 1.5mm
∅H max. b 20mm
∅H min. a 6.1mm
∅J max. b 20mm
∅J min. a 4.1mm
∅K max. b 20mm
∅K min. a 4.1mm
Dielectric Strength 20 kV/mm
Dielectric Strength test method IEC 243
Flammability ASTM D635
Material Polyolefin, cross-linked (PO-X)
Min. Shrink Temperature - °C +100 °C
Operating Temperature - °C -55 °C to +120 °C
Specifications
GTIN-13 / EAN 5022660687549
ETIM 6.0 EC002464
ETIM 7.0 Key EC002464
