Double T-Shapes : 1310-1-GW24

Helashrink 1310 Series, 30° angleArticle number: 413-10011

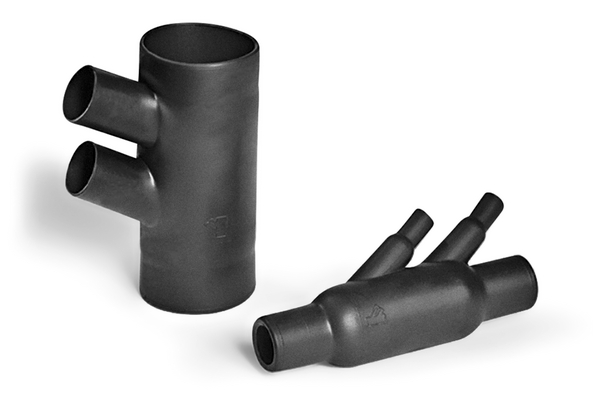

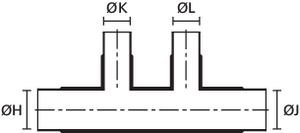

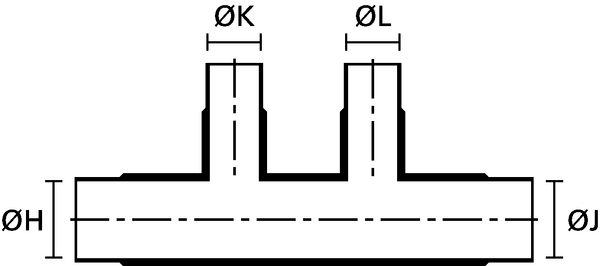

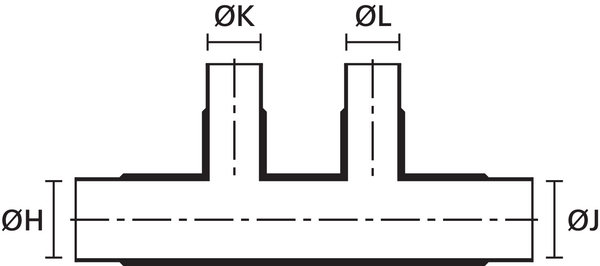

1310-1 supplied / fully recovered.

Features

  • For cable harnesses needing specialised orientation
  • Strain relief, sealing and mechanical protection

Certifications & Approvals

Application

Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.

Application Tool H6100, CHG900
Colour Black (BK)
Pack Cont. 1pc.
Package Quantity per bag
PART DESCRIPTION 1310-1-GW24-PO-X-BK
Product Family Helashrink 1310 Series, 30° angle
Product Group Double T-Shapes
Short Description Branching part 45º (Y-joints) are employed for mechanical tension relief in cable harnesses.
Variant For 2-core cables
Angle 30°
Flexibility semi rigid

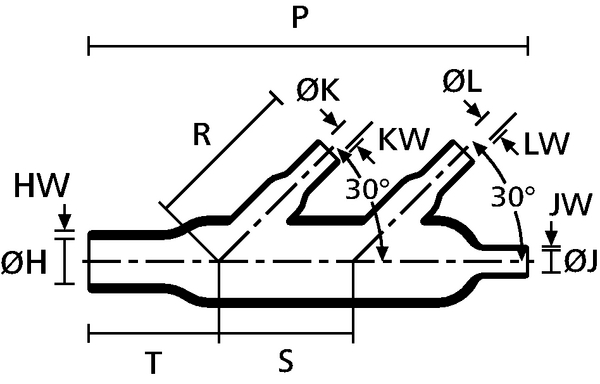

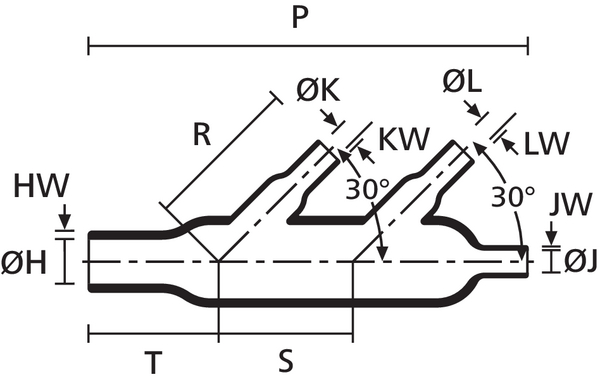

HW ± 20 % 2.5mm
JW ± 20 % 2.5mm
KW ± 20 % 1.3mm
P ± 10 % 88.9mm
R ± 10 % 50.8mm
S ± 10 % 25.4mm
T ± 10 % 19.1mm
∅ L max. b 6.4mm
∅ L min. a 12.7mm
∅H max. b 15.2mm
∅H min. a 30.4mm
∅J max. b 15.2mm
∅J min. a 30.4mm
∅K max. b 6.4mm
∅K min. a 12.7mm
Adhesive W24
Dielectric Strength 14 kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Material Polyolefin, cross-linked (PO-X)
Min. Shrink Temperature - °C +135 °C
Operating Temperature - °C -75 °C to +150 °C
Specifications
Tensile Strength 15MPa
GTIN-13 / EAN 5022660424649
ETIM 6.0 EC002464
ETIM 7.0 Key EC002464
