GSR Graduated Strain Relief : 1751-1-HWM250

Helashrink 1750 Series, with ribArticle number: 417-51003

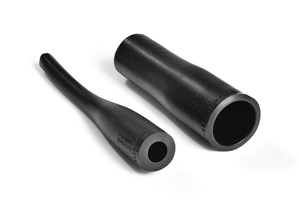

1751-1 supplied / fully recovered.

Features

  • Ideally suited for shipboard and railway carriage cabling
  • Very robust, superior crush resistance and excellent strain relief
  • Wall thickness varies with long tail, allowing setting at varying angles through 90°

Certifications & Approvals

Application

Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.

Application Tool H6100, CHG900
Colour Black (BK)
Pack Cont. 1pc.
Package Quantity per bag
PART DESCRIPTION 1751-1-HWM250-PO-X-BK
Product Family Helashrink 1750 Series, with rib
Product Group GSR Graduated Strain Relief
Flexibility semi rigid
HW ± 20 % 4.1mm
JW ± 20 % 1.5mm
P ± 10 % 152.4mm
R ± 10 % 30.5mm
T ± 10 % 1.5mm
V ± 10 % 3mm
∅H max. b 16.5mm
∅H min. a 25.4mm
∅J max. b 8.3mm
∅J min. a 25.4mm
Adhesive WM250
Flammability ASTM D635
Material Polyolefin, cross-linked (PO-X)
Min. Shrink Temperature - °C +135 °C
Specifications
GTIN-13 / EAN 5022660438585
ETIM 6.0 EC002464
ETIM 7.0 Key EC002464
