Helashrink 1800 Series, with rib, 30°, 45°, 60° angle
Art.-Nr. 418-33002 | 1833-4-G-PO-X-BK |  Details

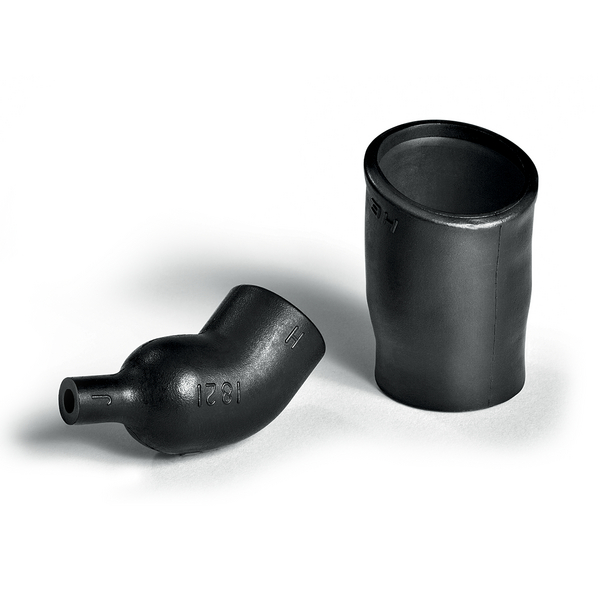

1821-42 supplied / fully recovered.

    • Provides strain relief and mechanical protection for harness systems
    • Use in conjunction with a circular grooved adaptor
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Application Tool H6100, CHG900
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    Pack Cont. 1pc.
    Package Content packed in bag
    PART DESCRIPTION 1833-4-G-PO-X-BK
    Product Family Helashrink 1800 Series, with rib, 30°, 45°, 60° angle
    Product Group Angle Shapes
    Flexibility semi rigid
    HW ± 20 % 1.8mm
    JW ± 30 % 1.8mm
    P ± 10 % 55mm
    R ± 10 % 45.3mm
    S nom. 35mm
    T ± 10 % 2.0mm
    V ± 10 % 3.5mm
    ∅H max. b 20.1mm
    ∅H min. a 31mm
    ∅J max. b 7mm
    ∅J min. a 31mm
    Min. Shrink Temperature - °C +135 °C
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660690297
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
