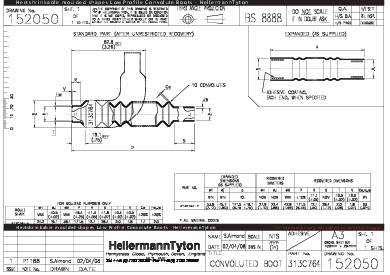

Low Profile Convolute Boots : 313C764-9-200

Helashrink 313C Series, with adapter lipArticle number: 422-00418

Features

  • For circular grooved adapters to provide strain relief
  • Excellent environmental sealing with adhesive
  • Convoluted design grants flexibility for different cable outlet angles

Certifications & Approvals

Application

Military and general performance harnessing.

Application Tool H6100, E4500, CHG900
Colour Black (BK)
Pack Cont. 5pcs.
Package Quantity per bag
PART DESCRIPTION 313C764-9-200-PO-X-BK
Product Family Helashrink 313C Series, with adapter lip
Product Group Low Profile Convolute Boots
Shrink Ratio 3:1
Variant For plug
Flexibility Flexible
HW ± 1.5 .06mm
JO ± 1.8 28.4mm
P ± 10 % 171.4mm
R max. 42.9mm
S ± 0.5 1.8mm
S ± 10 % 28.4mm
T ± 0.5 2mm
T ± 0.8 2.0mm
W min. 1.5mm
∅H max. b 27.9mm
∅H min. a 53.8mm
∅J max. b 22.3mm
∅J min. a 45.7mm
Adhesive 200
Dielectric Strength 20 kV/mm
Flammability ASTM D635
Material Polyolefin, cross-linked (PO-X)
Min. Shrink Temperature - °C +100 °C
Operating Temperature - °C -55 °C to +120 °C
Specifications
GTIN-13 / EAN 5022660668920
ETIM 6.0 EC002464
ETIM 7.0 Key EC002464
