Low Profile Convolute Boots : 313C774-9

Low Profile Convolute Boot with Adapter Lip blackArticle number: 422-00501

Features

  • For circular grooved adapters to provide strain relief
  • Excellent environmental sealing with adhesive
  • Convoluted design grants flexibility for different cable outlet angles

Certifications & Approvals

Application

Military and general performance harnessing.

Application Tool H6100, E4500, CHG900
Colour Black (BK)
Pack Cont. 5pcs.
Package Quantity per bag
PART DESCRIPTION 313C774-9-PO-X-BK
Product Family Helashrink 313C Series, with adapter lip
Product Group Low Profile Convolute Boots
Short Description Low Profile Convolute Boot with Adapter Lip black
Shrink Ratio 3:1
Variant For plug
Flexibility Flexible

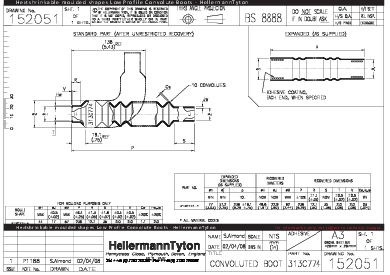

HW ± 1.5 .06mm
JO ± 1.8 35.4mm
JO ± 10 % 25.4mm
P ± 10 % 236.2mm
R max. 62.2mm
S ± 0.5 2.0mm
S ± 10 % 35.0mm
T ± 0.5 2.0mm
T ± 0.8 2.0mm
W min. 1.5mm
∅H max. b 40.6mm
∅H min. a 77.2mm
∅J max. b 22.8mm
∅J min. a 54.6mm
Dielectric Strength 20 kV/mm
ELV compliant (Article 4 - 2) YES
Flammability ASTM D635
Hazardous good No
Material Polyolefin, cross-linked (PO-X)
Min. Shrink Temperature - °C +100 °C
Operating Temperature - °C -55 °C to +120 °C
Specifications
GTIN-13 / EAN 5022660453533
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.24m
Packaging 1 - Qty 5
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00288
Packaging 1 - Weight (kg) 0.315001kg
Packaging 1 - Width (m) 0.24m
ETIM 6.0 EC002464
ETIM 7.0 Key EC002464
