29/06/2026

4-Way Outlet Shapes, VG style


Art.-Nr. 404-11015

| 411-2-G-PO-X-BK

 |

Copied

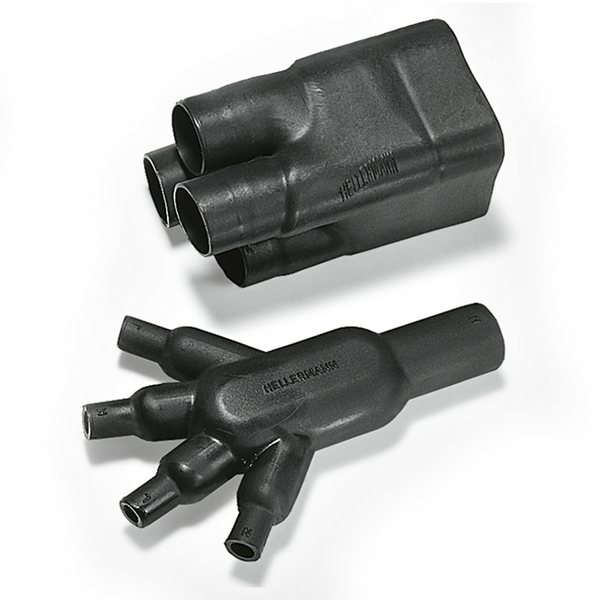

a: Expanded form (supplied)
b: Fully recovered form (after heating)
403-1 supplied / fully recovered.

    • All outlets clearly marked to aid orientation during installation
    • Cable strain relief and mechanical protection at harness transition points
    Add to watchlist
    Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 411-2-G-PO-X-BK
    Package Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 400 Series
    Product Group 4-Way Outlet Shapes, VG style
    Type 411-2-G
    UV-Stabilised No
    Variant For 4-core cables
    ⌀H max. b 8.9mm
    ⌀H min. a 30mm
    ⌀J/K/L/N max. b 4.3mm
    ⌀J/K/L/N min. a 15mm
    Flexibility semi rigid
    For Object Outside Diameter 13.12-25.78 mm
    HW ± 30 % 1.8mm
    P ±10%=overall length 71mm
    R nom. 36.1mm
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660461866
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
