22/09/2026

4-Way Outlet Shapes, VG style


???product.artNr??? 404-11017

| 411-2-J-PO-X-BK

 |

???product.copy???
1694657

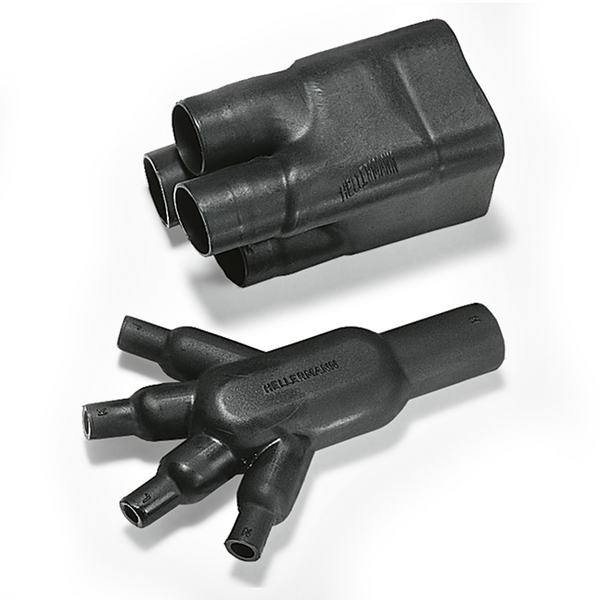

a: Expanded form (supplied)
b: Fully recovered form (after heating)
403-1 supplied / fully recovered.

    • All outlets clearly marked to aid orientation during installation
    • Cable strain relief and mechanical protection at harness transition points
    ???myht.addtowatchlist???
    ???product.orderrequest.link???
    ???downloads???
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 411-2-J-PO-X-BK
    Package Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 400 Series
    Product Group 4-Way Outlet Shapes, VG style
    Type 411-2-J
    Typical Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    UV-Stabilised No
    Variant For 4-core cables
    ⌀H max. b 8.9mm
    ⌀H min. a 30mm
    ⌀J/K/L/N max. b 4.3mm
    ⌀J/K/L/N min. a 15mm
    Flexibility semi rigid
    For Object Outside Diameter 13.12-25.78 mm
    HW ± 30 % 1.8mm
    P ±10%=overall length 71mm
    R nom. 36.1mm
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Country of Origin GB
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
