Solar label, pre-printed, yellow, 19.05x104.6mm, 50pcs.
Art.-Nr. 596-00587
| CBACKFED-443/281-YE
|
Copied
Request quote
| Application | For use on panel near back feed breakers |
| Application Method | Labels are applied by hand to PV installations where durable UV resistant marking is required. |
| Colour | Yellow (YE) |
| Colour of Print | Black (BK) |
| Key product features | pre-printed, chemical resistance, outdoor use, UV resistant |
| Material | Type 443/281, UV-stabilised, flexible white vinyl with clear polyester laminate (443/281) |
| PART DESCRIPTION | CBACKFED-443/281-YE |
| Package Content | 50pcs. |
| Package Content packed in | pack |

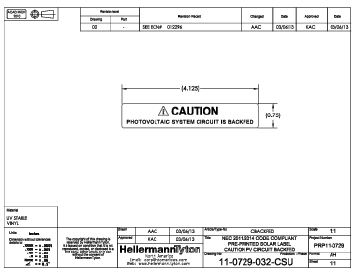

| Technical Description | 4.12" X .75" Black text on an Yellow background that reads as: "CAUTION - PHOTOVOLTAIC SYSTEM CIRCUIT IS BACKFED." - 50 per roll. |
| Type | CBACKFED |
| UV-Stabilised | Yes |
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40 °C to +79 °C |
| CE Certification | No |
| CSA Certified | No |
| Curing Temperature | +10 °C |
| Halogen-free | No |
| Operating Temperature | -40 °C to +79 °C |
| Pre-Printed | Yes |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | NEC2014, NEC2017, NEC2020, NEC2023, UL 969 |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| UL-File Number | MH11410 |
