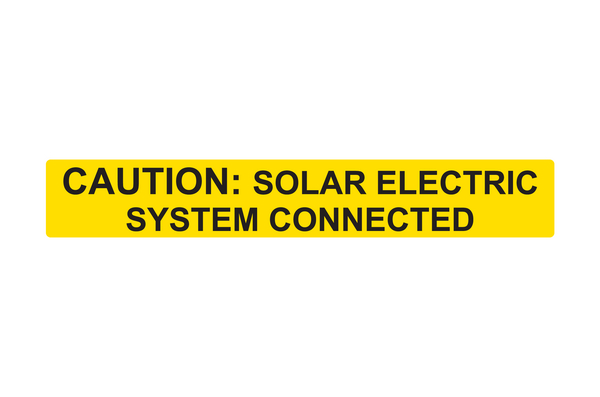

Solar label, pre-printed "CAUTION: SOLAR ELECTRIC SYSTEM CONNECTED", yellow, 25.4x165.1mm, 50pcs.
Art.-Nr. 596-00613
| CSESC-505/281-YE
|
Copied
| Application | for use on Main Service Disconnect |
| Application Method | Labels are applied by hand to PV installations where durable UV resistant marking is required. |
| Colour | Yellow (YE) |
| Colour of Print | Black (BK) |
| Key product features | pre-printed, chemical resistance, outdoor use, UV resistant |
| Marking Text | CAUTION: SOLAR ELECTRIC SYSTEM CONNECTED |
| Material | Type 505/281, UV-stabilised, reflective vinyl with clear polyester laminate (505/281) |
| PART DESCRIPTION | CSESC-505/281-YE |
| Package Content | 50pcs. |
| Package Content packed in | pack |
| Technical Description | 6.5" X 1" Black text on a yellow background that reads as: "CAUTION - SOLAR ELECTRIC SYSTEM CONNECTED" in 3/8" tall characters using reflective inks. 50 per pkg. |
| Type | CSESC |
| UV-Stabilised | Yes |
Download
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40 °C to +150 °C |
| CE Certification | No |
| CSA Certified | No |
| Curing Temperature | +10 °C |
| Halogen-free | No |
| Operating Temperature | -40 °C to +79 °C |
| Pre-Printed | Yes |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI Standard Z535.4, IFC 2012, NEC2011, NEC2014, UL 969 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| UL-File Number | MH11410, MH14382, MH16736 |
