Divisible connectors with gas-stop.
Art.-Nr. 874-00022 | EBM-GS_10-5.0-6.5-BK |

Copied
Divisible connectors EBM-GS have an integrated gas stop.
Divisible connectors with gas-stop EBM-GS connect occupied speedpipe.

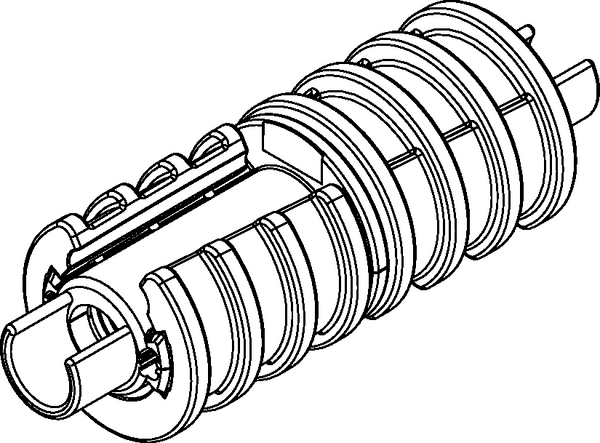

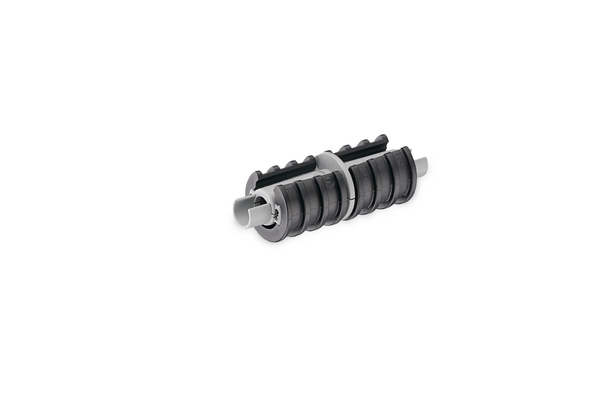

Divisible connector with gas-stop EBM-GS 10

    • sealing speedpipe against gas and water up to 0.5 bar (also longitudinally)
    • resistant to tensile for all current practical applications
    • applicable for direct burying
    • easily and quickly installed
    Add to watchlist

    Request your individual offer now

     Request quote
    Application The divisible connector with gas-stop connects alreay occupied speedpipe. Especially ahead of house lead-ins and ground connectors the integraded gas-stop pays off: It serves for the gas- and water-tight sealing of speedpipe up to a pressure of 0.5 bar also in longitudinal direction. Buildings and sleeves remain dry and safe.
    Cable ⌀ max 6.5mm
    Cable ⌀ min 5mm
    Colour Black (BK)
    PART DESCRIPTION EBM-GS_10-5.0-6.5-BK
    Package Content 12pcs.
    Package Content packed in carton
    Product Family EBM-GS 10/5,0-6,5
    Product Group Divisible connectors with gas-stop.
    Type EBM-GS_10-5.0-6.5
    Diameter (D) 10mm
    Country of Origin DE
    GTIN-13 / EAN 4031051424527
    Packaging 1 - Qty 12
    Packaging 1 - Type carton
    Packaging 2 - Qty 2520
    Packaging 2 - Type pallet
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
