speedpipe bundles ground tight covered.
Art.-Nr. 872-00259 | SRV-G_10x14_tc-PE-HD-OG |

Copied
speedpipe bundles ground SRV-G tc for direct burying.

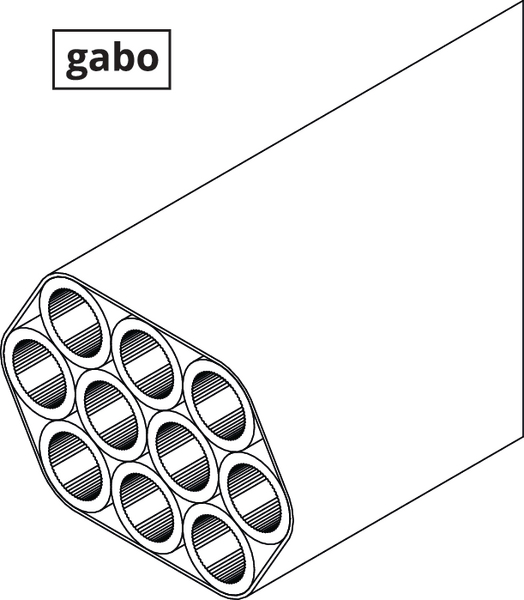

speedpipe bundle ground SRV-G 10x14 tc gabo
speedpipe bundle ground SRV-G 10x14 tc gabo

    • resistant to the effects of the surrounding soil
    • easy and time saving branching off without any special tools
    • the combination of smaller dimensions with an internal single duct of a greater diameter is suitable for FTTB/H as well as for FTTN/C
    • suitable for all common types of laying
    • supplied on a wooden one-way spool
    Add to watchlist

    Request your individual offer now

     Request quote
    Show all
    Application speedpipe bundles ground SRV-G tc bundle various colored, thick-walled speedpipe ground by means of a tight outer sheath. Due to the variety of single duct dimensions of the speedpipe ground and their combination within the bundle, you consider spare capacities for the future. Our system concept is reflected in the protective function and the ease of assembly of the tight outer sheath: it is rugged against the impacts of the surrounding soil, but nevertheless can be opened quickly, easily and safely for branching-off from the bundle.
    Colour Orange (OG)

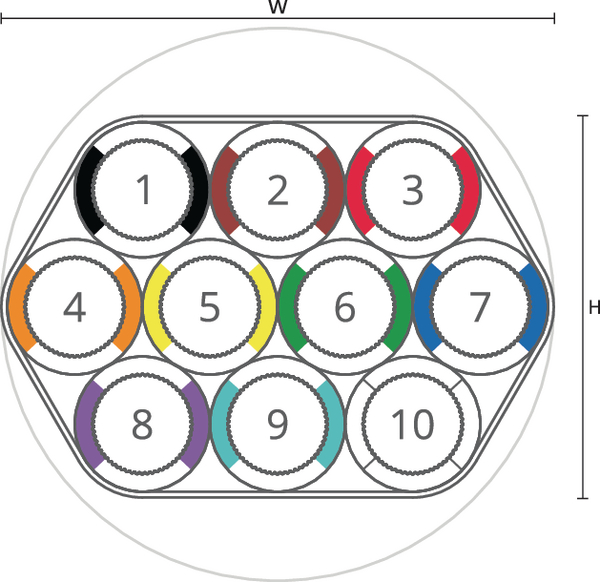

    Description 10 speedpipe ground 14x2.0
    Expansion level Fibre to the Node (FTTN), Fibre to the Curb (FTTC)
    Material Polyethylene, high density (PE-HD)
    PART DESCRIPTION SRV-G_10x14_tc-PE-HD-OG
    Package Content 1100m
    Package Content packed in drum
    Product Family SRV-G 10x14 tc
    Product Group speedpipe bundles ground tight covered.
    Type SRV-G_10x14_tc
    Variant gabo
    Weight/Unit 0.847kg
    Length (L) 1100m
    Wall (WT) 0.6mm
    Country of Origin DE
    GTIN-13 / EAN 4031051022686
    Packaging 1 - Height (m) 2.4m
    Packaging 1 - Length (m) 2.4m
    Packaging 1 - Qty 1100
    Packaging 1 - Type drum
    Packaging 1 - Volume (m³) 6.912m³
    Packaging 1 - Weight (kg) 1281.7kg
    Packaging 1 - Width (m) 1.2m
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
