18/04/2024

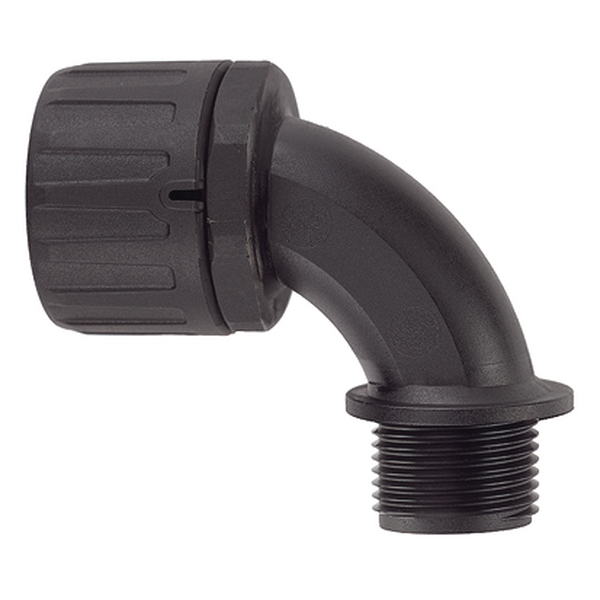

HG038-90-0500-PA66-BK : HG038-90-0500
Art.-Nr. 166-90332 | HG038-90-0500-PA66-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6 (PA66)
    Pack Cont. 10pcs.
    Package Content packed in bag
    PART DESCRIPTION HG038-90-0500-PA66-BK
    Thread type NPT
    Variant 90°-elbow
    Length (L) 51mm
    Nominal ∅ 16mm
    Nominal ∅ 0.38"
    Outside Ø (OD) 29mm
    Outside ∅ (OD) 1.14"
    Thread Size (Imperial) 1/2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    IP-Rating IP66
    Operating Temperature -50 °C to +135 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL-File Number E229161
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026514468
    ETIM 7.0 Key EC001176
    ETIM 8.0 Key EC001176
    ETIM 9.0 Key EC001176
    UNSPSC Key 39131708
