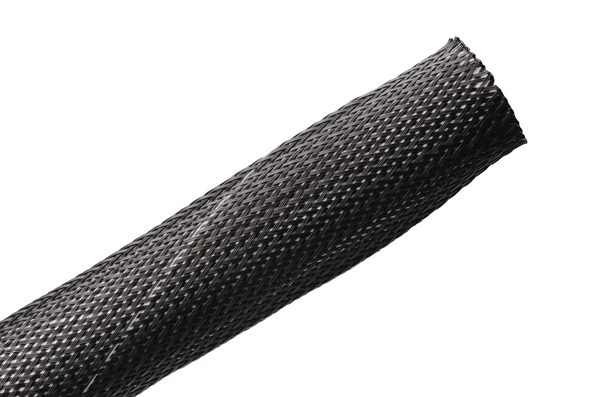

Braided sleeving, nom⌀31.8mm, ⌀19.1-44.5mm, black, 15.24m
Art.-Nr. 170-03110
| BSHLR1140-E/CTFE-BK
|
Copied
- Meets UL 2024 and NFPA 262 specifications meets requirements for use in plenum applications
- Technically advanced monofilament material is rated as low smoke, flame resistant and can withstand exposure to Cobal 60 radiation
- Exceeds requirements of FMVSS 302 as well as aviation industry requirements of FAR25
Request your individual offer now
Request quote
| Colour | Black (BK) |
| Description | Halar self-extinguishing sleeving is used where flammability, high temperature endurance and low outgassing are the primary concern. |
| Material | Ethylene Chlorotrifluoroethylene (E/CTFE) |
| Open, post termination (Yes/No) | Yes |
| PART DESCRIPTION | BSHLR1140-E/CTFE-BK |
| Package Content | 15.24m |
| Package Content packed in | reel |
| Type | BSHLR1140 |
| UV-Stabilised | No |
Download
| Abrasion Resistance | Medium |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL VW-1, FAR 25 |
| Halogen-free | No |
| Melting Point | +250 °C |
| Operating Temperature | -75 °C to +150 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 746B, UL 1441, UL 2024, UL 746A |
| UL File link | Link |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| UL-File Number | E107055 |
