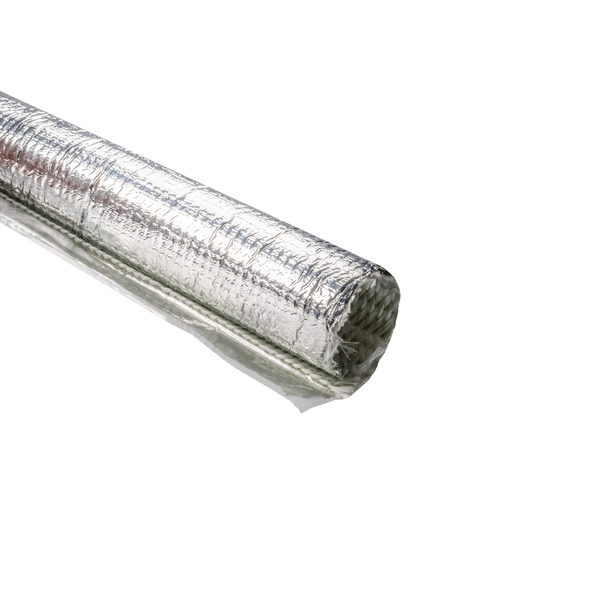

Braided sleeving, nom⌀25.40mm, ⌀2.54-24.1mm, silver, 9pcs.
Art.-Nr. 170-03195 | BSHTTSW1SB-GF-AL-SR |

Copied
Aluminum laminated fiberglass wrap sleeving combines the protection of bonded aluminum and fiberglass into a robust solution that deflects radiant heat away from sensitive wires and cables.

    • A layer of aluminum provides protection from chemicals, scraping, cuts and abrasion
    • Additional layer also provides insulation barrier for vulnerable wires and cables within high temperature environments
    • Cuts with ordinary scissors for fast, easy application
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Silver (SR)
    Description Aluminum Laminated Fiberglass Wrap sleeving combines the protection of bonded aluminum and fiberglass into a robust solution that deflects radiant heat away from sensitive wires and cables. Wrap-around design allows for fast and easy installation and maintenance.
    Material Glass-fibre with aluminium foil (GF-AL)
    Open, post termination (Yes/No) Yes
    PART DESCRIPTION BSHTTSW1SB-GF-AL-SR
    Package Content 9pcs.
    Package Content packed in pack
    Type BSHTTSW1SB
    UV-Stabilised No
    ⌀ D 1.0"
    Bundle ⌀ 2.54-24.1mm
    Bundle ⌀ max. 24.1mm
    Bundle ⌀ min. 2.54mm
    Diameter (D) 25.4mm
    Length (L) 1.22m
    Nominal ⌀ 1"
    Nominal ⌀ 25.40mm
    Wall (WT) 1.06mm
    Wall (WT) 0.042"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Melting Point +2048 °F (1120 °C)
    Operating Temperature -60 °C to +255 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026490885
    Packaging 1 - Type box
    Reel Length 4.0ft
    Reel Length 1.22m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
