Polyamide PA6.6
Art.-Nr. 170-03028 | BSPA66340-PA66-BK

Copied
  • Nylon monofilament construction weave offers a tight, 12 mil braid that provides full coverage but will not rot or retain moisture
  • Material performs well in wet applications and where abiding substrate has a smooth surface

Request your individual offer now

Colour Black (BK)

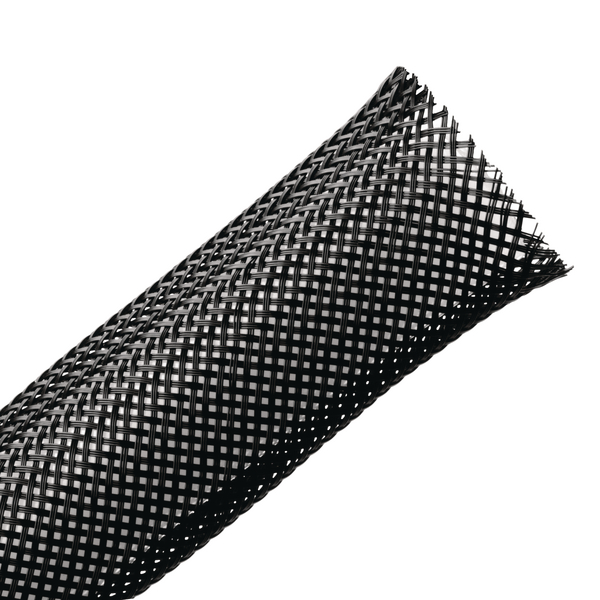

Description A pliable yet durable nylon sleeve that protects against cuts, abrasion and excessive wear caused by repetitive motion.
Material Polyamide 6.6 (PA66)
Open, post termination (Yes/No) Yes
PART DESCRIPTION BSPA66340-PA66-BK
Pack Cont. 22.86m
Package Content packed in pack
Product Group Polyamide PA6.6
Type BSPA66340
⌀ D 0.75"
Bundle ⌀ 12.7-31.8mm
Bundle ⌀ max. 31.8mm
Bundle ⌀ min. 12.7mm
Diameter (D) 19.1mm
Length (L) 22.9m
Nominal ⌀ 0.75"
Nominal ⌀ 19.1mm
UV-Stabilised No
Abrasion Resistance High
CE Certification No
CSA Certified No
Flammability UL 94 V2, FMVSS 302
Halogen-free Yes
Melting Point +255 °C
Operating Temperature -45 °C to +150 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin US
GTIN-13 / EAN 4031026432120
Packaging 1 - Type reel
Packaging 1 - Weight (kg) 0.5kg
Reel Length 75.0ft
Reel Length 22.9m
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
UNSPSC Key 39131602
