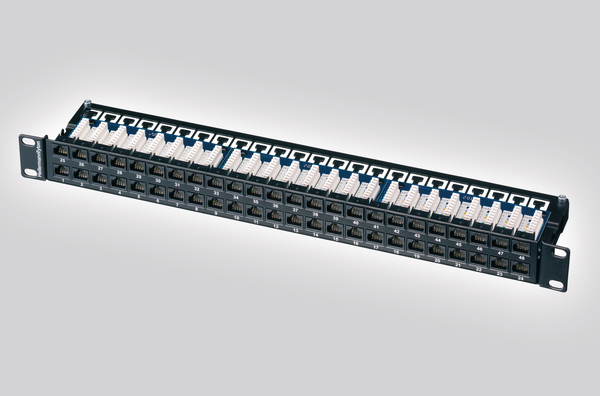

2U 48 Port Panel
Art.-Nr. 853-20129 | PP110C5E48RS Details

  • Exceeds Category 5e performance standards
  • Configured for T568A and T568B wiring
  • 110 punch down IDC
  • Write-on labels provided for easy identification
  • Optional rear cable manager available
  • Available with or without Rack Snaps
  • Backward compatible with Category 5 and voice applications
Show more

Request your individual offer now

Colour Black (BK)
Description The Universal 110 Category 5e range of patch panels offer exceptional performance and are also available in 1U 24 port, 1U 48 port and 12 port vertical configurations. The 2U 48 port panel is constructed of 8 modular units, each offering 6 RJ45 ports allowing for any of the 6 port modules to be replaced if damaged at any stage during installation. The Universal 110 2U 48 Port Panel is supplied with or without Rack Snap mounting fixings and a rear cable manager is also available. The Universal 110 Category 5e products are designed to support any data or voice protocol that is capable of running over a Category 5e cabling system.
PART DESCRIPTION PP110C5E48RS
Performance Category Category 5E (Class D)
Port count 48
Product Family 2U 48 Port Panel
Product Group Universal 110 Category 5e
Technical Description The panels are manufactured with 110 IDC punch down blocks and are supplied with a clear plastic channel which protects the PCB and allows for easy viewing of the wiring label. The panel is screen printed and offers write-on labelling fields for easy port identification. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 5e. The Universal 110 Category 5e 2U 48 Port Panel offers backward compatibility with Category 5 and voice products.

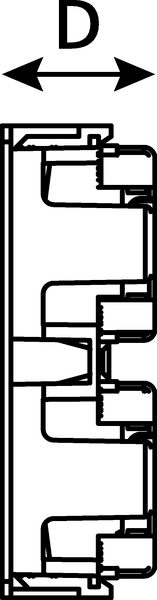

Depth (D) 29mm
Height (H) 88mm
Height, Units 2U

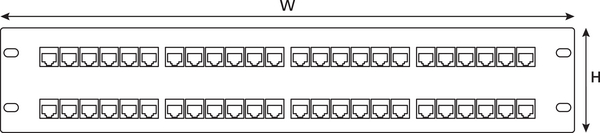

Width (W) 483mm
Country of Origin GB
Dimensions W x H x D 483 mm x 88 mm x 29 mm
GTIN-13 / EAN 5022660114564
ETIM 8.0 Key EC000264
ETIM 9.0 Key EC000264
