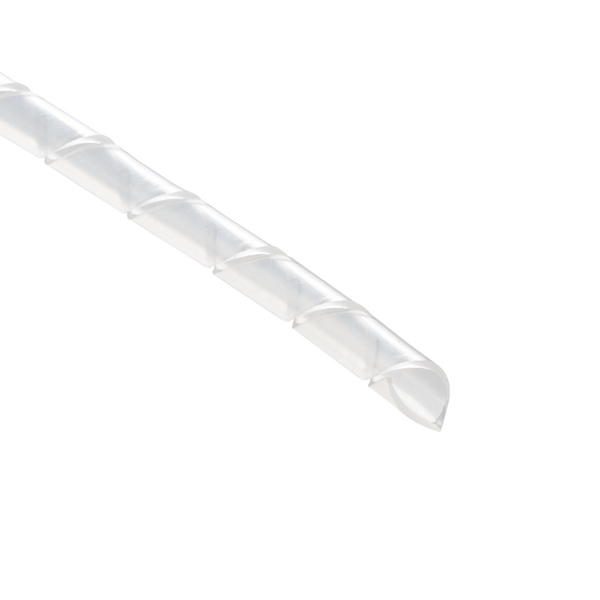

Cable Organizer
Art.-Nr. 161-05003 | 1N-PA6-NA Details

  • Used for organising and protecting wires, cables and tubes
  • Available in a wide range of diameters and colours
  • Can be fitted onto cables, wires or tubes in situ
  • Wires can branch out at any point and in any direction
Package size

Request your individual offer now

Colour Natural (NA)
Material Polyamide 6 (PA6)
Pack Cont. 30.48m
Package Content packed in reel
PART DESCRIPTION 1N-PA6-NA
Product Group Cable Organizer
Variant Spiral Binding
Bundle Diameter max (metric) 12.7mm
Bundle ∅ 1.6-12.7mm
Bundle ∅ min. 1.6mm
Diameter (D) 3.18mm
Length (L) 30.48m
Nominal ∅ 3.18mm
Nominal ∅ 0.13"
Pitch (P) 4.75mm
Pitch (P) 0.187"
Wall (WT) 0.38mm
Wall (WT) 0.015"
∅ D 0.125"
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +121 °C
Self extinguishing Yes
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E147924
UV-Stabilised (Yes/No) No
Country of Origin US
GTIN-13 / EAN 4031026718514
Reel Length 30.48m
Reel Length 100.0ft
ETIM 7.0 Key EC002604
ETIM 8.0 Key EC002604
ETIM 9.0 Key EC002604
UNSPSC Key 39131604
