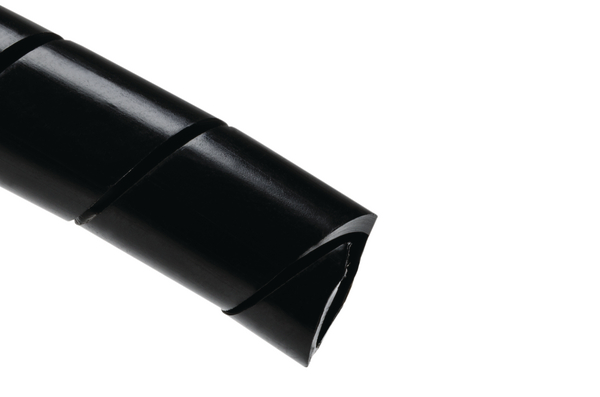

Spiralwrap 6.35 mm diameter, PE, black, 30m/reel
Art.-Nr. 161-05036 | 2NFP-PE-BK |  Details

    • For organising and protecting wires, cables and tubes
    • Wide range of diameters and colours
    • Capable of retro-fitting
    • Wires can branch out at any point, in any direction
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Colour Black (BK)
    Material Polyethylene (PE)
    Pack Cont. 30.48m
    Package Content packed in reel
    PART DESCRIPTION 2NFP-PE-BK
    Product Group Spiralwrap
    Short Description Spiralwrap 6.35 mm diameter, PE, black, 30m/reel
    Variant Spiral Binding
    Bundle Diameter max (metric) 50.8mm
    Bundle ∅ 4.75-50.8mm
    Bundle ∅ min. 4.75mm
    Diameter (D) 6.35mm
    Length (L) 30.48m
    Nominal ∅ 6.35mm
    Nominal ∅ 0.25"
    Pitch (P) 9.53mm
    Pitch (P) 0.375"
    Wall (WT) 1.14mm
    Wall (WT) 0.045"
    Weight/Unit 0.020422kg
    ∅ D 0.25"
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -60 °C to +88 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL-File Number E147924
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026472188
    Packaging 1 - Height (m) 0.097m
    Packaging 1 - Length (m) 0.18m
    Packaging 1 - Qty 30
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.00314m³
    Packaging 1 - Weight (kg) 0.61266kg
    Packaging 1 - Width (m) 0.18m
    Packaging 3 - Height (m) 0.47m
    Packaging 3 - Length (m) 0.52m
    Packaging 3 - Qty 1200
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.1271m³
    Packaging 3 - Weight (kg) 25.006kg
    Packaging 3 - Width (m) 0.52m
    Packaging 4 - Height (m) 1.084m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 4800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.041m³
    Packaging 4 - Weight (kg) 121.026kg
    Packaging 4 - Width (m) 0.8m
    Reel Length 30.48m
    Reel Length 100.0ft
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
    UNSPSC Key 39131604
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
