30/01/2026

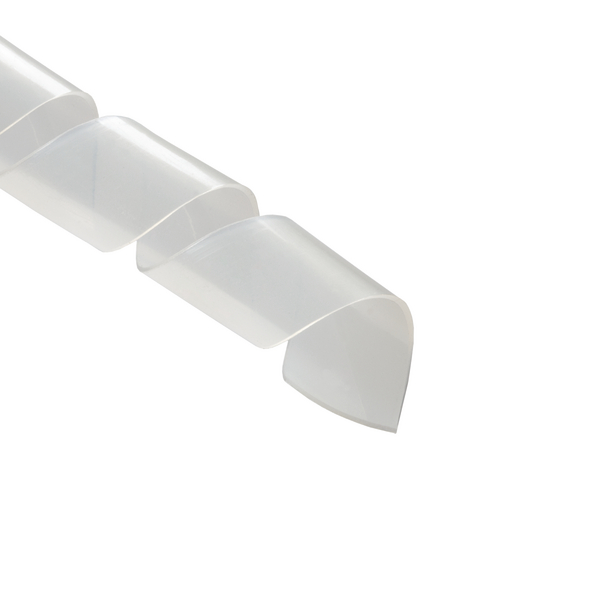

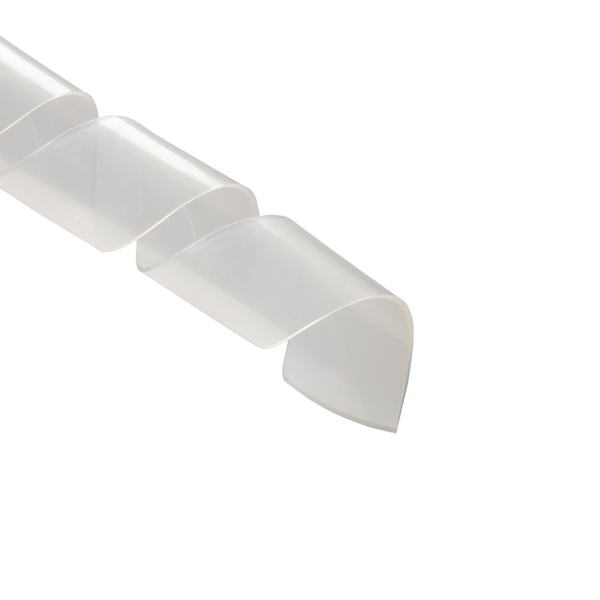

Spiral wrap, nom⌀25.4mm, ⌀19.1-127.0mm, -267 °C to +260 °C, natural, 30.48m
Art.-Nr. 161-05081 | 5P-PTFE-NA |

Copied
Inner edges of spiralwrap are beveled to prevent damage to cables.
Sheathing allows flexible routing and lead-out of cables.
Spiralwrap protective sheathing is reusable and resistant to most chemicals.

    • Used for organising and protecting wires, cables and tubes
    • Available in a wide range of diameters and colours
    • Can be fitted onto cables, wires or tubes in situ
    • Wires can branch out at any point and in any direction
    Stock item
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA)
    Material Polytetrafluoroethylene (PTFE)
    PART DESCRIPTION 5P-PTFE-NA
    Package Content 30.48m
    Package Content packed in pack
    Product Group Cable Organizer
    Type 5P
    UV-Stabilised No
    Variant Spiral Binding
    ⌀ D 1.0"
    Bundle ⌀ 19.1-127.0mm
    Bundle ⌀ max. 127.0mm
    Bundle ⌀ min. 19.1mm
    Diameter (D) 25.4mm
    Length (L) 30.48m
    Nominal ⌀ 1"
    Nominal ⌀ 25.4mm
    Pitch (P) 1.0"
    Pitch (P) 25.4mm
    Wall (WT) 1.02mm
    Wall (WT) .040"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free No
    Operating Temperature -267 °C to +260 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E147924
    Country of Origin US
    GTIN-13 / EAN 4031026718484
    Packaging 1 - Qty 1
    Packaging 1 - Type pack
    Reel Length 100.0ft
    Reel Length 30.48m
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
    UNSPSC Key 39131604
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
