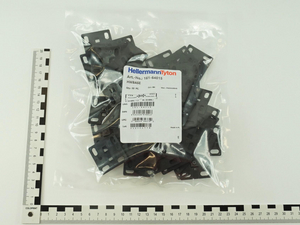

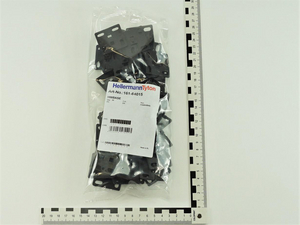

Accessory for HWCLIP08, HWCLIP16, HWCLIP20, ..., Helawrap, black, 50pcs. (HWBASE)
Art.-Nr. 161-64014
| HWBASE-PA66HIRHS-BK
|
Copied
- Mounting plates can be fixed with screws, cable ties or adhesive
- Can be used to mount any size HWClip
Request quote
More products in this product group:
This product is part of:
| Application |
To complete the Helawrap cable management system various Helawrap Clips in compatible sizes are available. The mounting clips can be combined and adjusted individually. Attached to a mounting base the assembly can be screw mounted or directly sticked to the surface. |
| Application Method | Place cables in applicator, then zip through cover sleeve. |
| Colour | Black (BK) |
| Fixation Method | screw-hole |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | HWBASE-PA66HIRHS-BK |
| Package Content | 50pcs. |
| Package Content packed in | pack |
| Product Family | HWBase |
| Product Group | Acessories for retaining Helawrap Open Cable Cover |
| Short Description | Screw-hole mounting base for cable cover 38x38 mm, PA66HIRHS, black |
| Type | HWBASE |
| UV-Stabilised | No |
| Weight/Unit | 0.0033kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Melting Point | +284 °F (+140 °C) |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026268705 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.215m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.001316875m³ |
| Packaging 1 - Weight (kg) | 0.18977kg |
| Packaging 1 - Width (m) | 0.245m |
| Packaging 3 - Height (m) | 0.171m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0172m³ |
| Packaging 3 - Weight (kg) | 3.988528kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.152m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.106m³ |
| Packaging 4 - Weight (kg) | 213.664kg |
| Packaging 4 - Width (m) | 0.8m |
