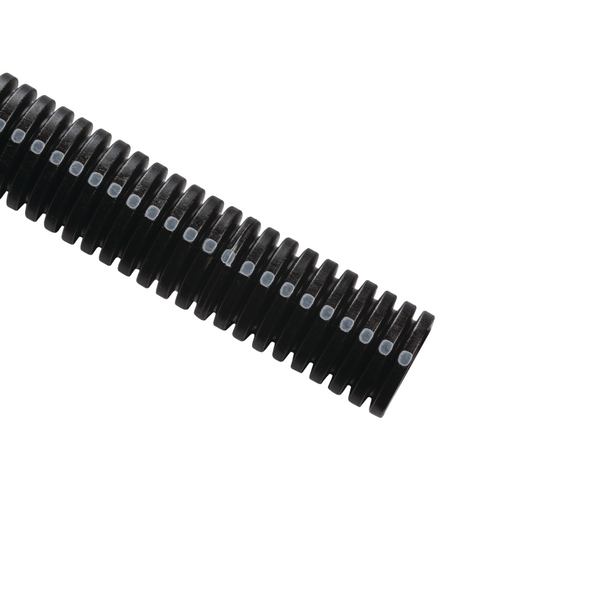

Corrugated tubing, nom⌀9.65mm, OD=13.36mm, ID=9.65mm, black, 579.12m
Art.-Nr. 169-60015
| CTN380-PA6-BK
|
Copied
- Durable tubing provides protection of wire harness from friction, vibration, fraying and puncture
- Tubing protects cables and wires against automotive fluids, vibration wear
- Weather resistant material provides protection against water, snow, ice, and the effects of heat, cold, and sunlight
Request your individual offer now
Request quote
| Colour | Black with Grey Stripe (BKSTGY) |
| Description | HellermannTyton’s Convoluted Tubing, also known at Split Loom Tubing, provides an efficient method of routing and protecting wire harness assemblies, while reducing the chance of installation damage. With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly. It can also serve to protect valuable hoses and cables. Convoluted tubing offer’s excellent protection against vibration wear, water, snow, ice and the effects of heat, cold and sunlight on cables and wires. |
| Material | Polyamide 6 (PA6) |
| PART DESCRIPTION | CTN380-PA6-BK |
| Package Content | 579.12m |
| Package Content packed in | carton |
| Type | CTN380 |
| UV-Stabilised | No |
| Variant | Slit |
|
|
|
| ⌀ (D2) | 9.65mm |
| ⌀ D | 0.526" |
| ⌀ D2 | 0.380" |
| Bundle ⌀ | 1.0-9.7mm |
| Bundle ⌀ max. | 9.7mm |
| Bundle ⌀ min. | 1.0mm |
| Diameter (D) | 13.36mm |
| Inner Diameter D (Imperial) | 0.380" |
| Inside ⌀ (ID) | 9.65mm |
| Length (L) | 579.1m |
| Nominal ⌀ | 0.38" |
| Nominal ⌀ | 9.65mm |
| Outside ⌀ (OD) | 13.36mm |
| Outside ⌀ (OD) | 0.526" |
| Outside ⌀ (OD2) | 0.526" |
| Outside ⌀ (OD2) | 13.36mm |
| Wall (WT) | 0.127mm |
| Wall (WT) | 0.005" |
