26/06/2026

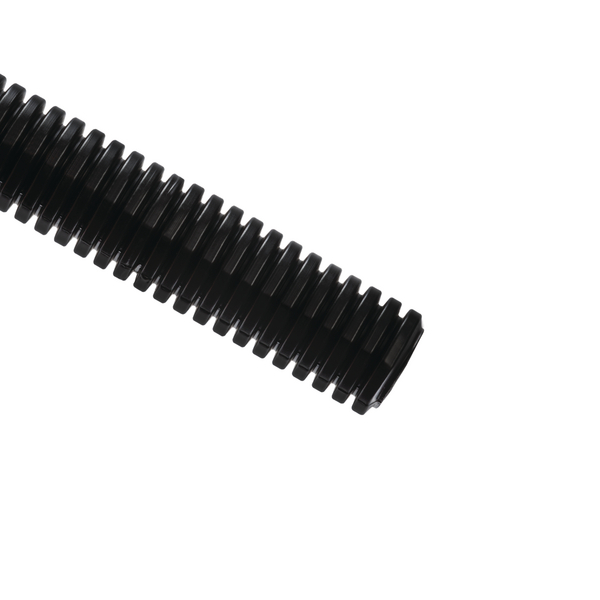

Corrugated tubing, nom⌀38.1mm, OD=49.45mm, ID=41.83mm, black, 30.48m


Art.-Nr. 169-60540

| CTP1120UNSLIT-PE-BK

 |

Copied
Weather resistant material provides protection against water, snow, ice, and the effects of heat, cold, and sunlight.
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.
2224319
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.
CTN series convoluted tubing.
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.

    Add to watchlist
    Request quote
    Downloads
    Colour Black (BK)
    Material Polyethylene (PE)
    PART DESCRIPTION CTP1120UNSLIT-PE-BK
    Package Content 30.48m
    Package Content packed in carton
    Type CTP1120UNSLIT
    UV-Stabilised No
    Variant Unslit
    ⌀ (D2) 41.83mm
    ⌀ D 1.947"
    ⌀ D2 1.647"
    Bundle ⌀ 1.0-41.8mm
    Bundle ⌀ max. 41.8mm
    Bundle ⌀ min. 1.0mm
    Diameter (D) 49.45mm
    Inner Diameter D (Imperial) 1.647"
    Inside ⌀ (ID) 41.83mm
    Length (L) 30.5m
    Nominal ⌀ 1.5"
    Nominal ⌀ 38.1mm
    Outside ⌀ (OD) 49.45mm
    Outside ⌀ (OD) 1.947"
    Outside ⌀ (OD2) 1.947"
    Outside ⌀ (OD2) 49.45mm
    Wall (WT) 0.152mm
    Wall (WT) 0.006"
    CE Certification No
    CSA Certified No
    Flammability not flame retardant
    Halogen-free No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin CA
    GTIN-13 / EAN 4031026747484
    Packaging 1 - Qty 1
    Packaging 1 - Type carton
    UNSPSC Key 39131601
