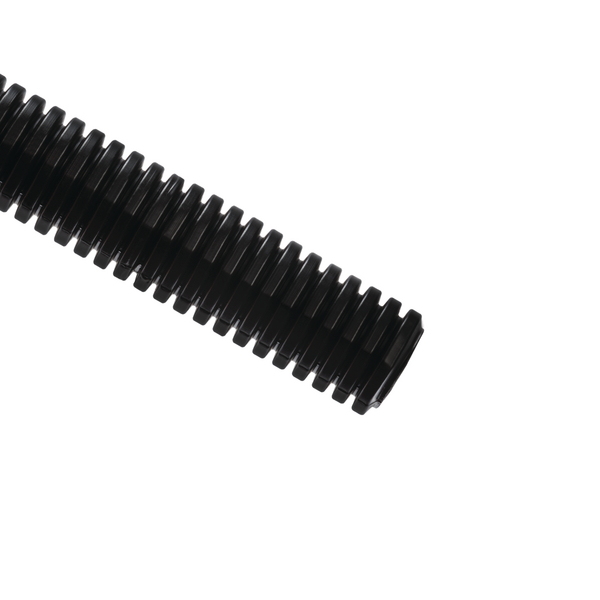

Corrugated tubing, nom⌀12.70mm, OD=17.78mm, ID=13.11mm, black, 304.80m


Art.-Nr. 169-60539

| CTP120UNSLIT-PE-BK

 |

Copied
Weather resistant material provides protection against water, snow, ice, and the effects of heat, cold, and sunlight.
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.
2224319
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.
CTN series convoluted tubing.
With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyethylene (PE)
    PART DESCRIPTION CTP120UNSLIT-PE-BK
    Package Content 304.80m
    Package Content packed in carton
    Type CTP120UNSLIT
    UV-Stabilised No
    Variant Unslit
    ⌀ (D2) 13.11mm
    ⌀ D 0.70"
    ⌀ D2 0.516"
    Bundle ⌀ 1.0-13.1mm
    Bundle ⌀ max. 13.1mm
    Bundle ⌀ min. 1.0mm
    Diameter (D) 17.78mm
    Inner Diameter D (Imperial) 0.516"
    Inside ⌀ (ID) 13.11mm
    Length (L) 304.8m
    Nominal ⌀ 0.5"
    Nominal ⌀ 12.70mm
    Outside ⌀ (OD) 17.78mm
    Outside ⌀ (OD) 0.70"
    Outside ⌀ (OD2) 0.70"
    Outside ⌀ (OD2) 17.78mm
    Wall (WT) 0.127mm
    Wall (WT) 0.005"
    CE Certification No
    CSA Certified No
    Flammability not flame retardant
    Halogen-free No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin CA
    GTIN-13 / EAN 4031026747477
    Packaging 1 - Qty 1
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 13.608kg
    UNSPSC Key 39131601
