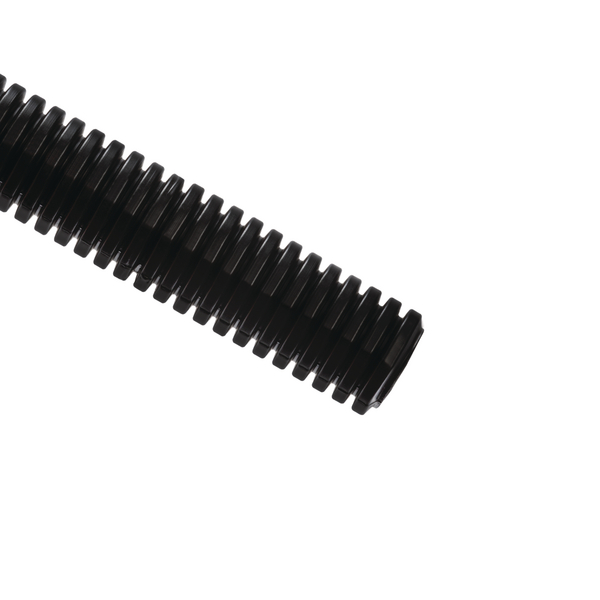

Corrugated tubing, nom⌀9.00mm, OD=13.36mm, ID=9.65mm, black, 30.48m
Art.-Nr. 169-60545 | CTP380-PE-BK |

Weather resistant material provides protection against water, snow, ice, and the effects of heat, cold, and sunlight.

With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.

With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.

With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.

With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.

With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.

With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.

With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly.

CTN series convoluted tubing.

Split side is ideal for applications where braided tubing or spiral wrap may be difficult to install.
Tubing provides full coverage where spiral wrap or other coverings may not be suitable.
In harsh applications the tubing provides resistance to crushing, impact, and abrasion.
Tubing offers excellent protection against automotive fluids, vibration wear, water, snow, ice, and the effects of heat, cold, and sunlight on cables and wires.

Package size

30.48 m

579.12 m

4572 m

Add to watchlist

Request your individual offer now

Request quote

Base Data

Colour	Black (BK)
Description	HellermannTyton’s Convoluted Tubing, also known at Split Loom Tubing, provides an efficient method of routing and protecting wire harness assemblies, while reducing the chance of installation damage. With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly. It can also serve to protect valuable hoses and cables. Convoluted tubing offer’s excellent protection against vibration wear, water, snow, ice and the effects of heat, cold and sunlight on cables and wires.
Material	Polyethylene (PE)
PART DESCRIPTION	CTP380-PE-BK
Package Content	30.48m
Package Content packed in	carton
Type	CTP380
UV-Stabilised	No
Variant	Slit

Product Dimensions


⌀ (D2)	9.65mm
⌀ D	0.526"
⌀ D2	0.380"
Bundle ⌀	1.0-9.7mm
Bundle ⌀ max.	9.7mm
Bundle ⌀ min.	1.0mm
Diameter (D)	13.36mm
Inner Diameter D (Imperial)	0.380"
Inside ⌀ (ID)	9.65mm
Length (L)	457.2m
Nominal ⌀	0.38"
Nominal ⌀	9.00mm
Outside ⌀ (OD)	13.36mm
Outside ⌀ (OD)	0.526"
Outside ⌀ (OD2)	0.526"
Outside ⌀ (OD2)	13.36mm
Wall (WT)	0.127mm
Wall (WT)	0.005"

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	not flame retardant
Halogen-free	No
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	CA
GTIN-13 / EAN	4031026747521
Packaging 1 - Qty	1
Packaging 1 - Type	carton
Packaging 1 - Weight (kg)	1.6232kg

More Information

UNSPSC Key

39131601
