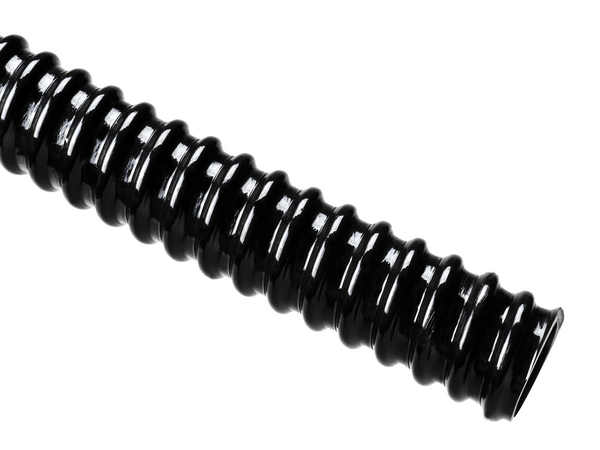

PSR1000-PVC-BK
Art.-Nr. 166-90223 | PSR1000-PVC-BK |

Copied
Smooth inside bore protects wires and eases insertion of wire bundles.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION PSR1000-PVC-BK
    Package Content 30.48m
    Package Content packed in pack
    Type PSR1000
    UV-Stabilised No
    Bending Radius min. (BR) 2.36"
    Bending Radius min. (R) 60mm
    Inner Diameter D (Imperial) 1.11"
    Inside ⌀ (ID) 28mm
    Length (L) 30.5m
    Nominal ⌀ 1"
    Nominal ⌀ 32mm
    Outside ⌀ (OD) 33.5mm
    Outside ⌀ (OD) 1.32"
    CE Certification No
    CSA Certified No
    Flammability EN IEC 61386
    Halogen-free No
    Operating Temperature -20 °C to +70 °C, (+80 °C, 200 h)
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL-File Number E229161
    Country of Origin GB
    GTIN-13 / EAN 4031026464480
    Packaging 1 - Qty 1
    Packaging 1 - Type reel
    UNSPSC Key 39131706
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
