PSR125-90-1250-PA66-BK


Art.-Nr. 166-90132

| PSR125-90-1250-PA66-BK

 |

Copied
External NPT thread provides a secure connection.

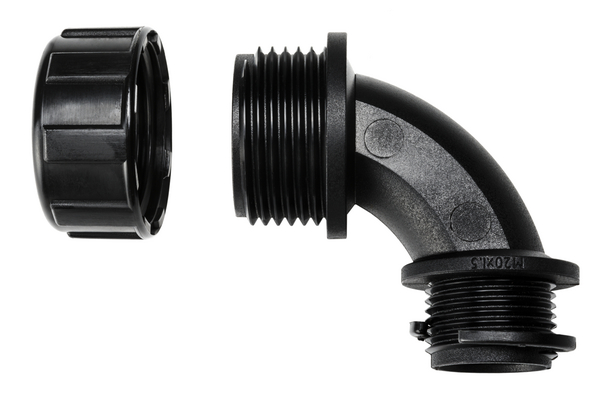

PSR-90 90° Elbow.

    Add to watchlist
    Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION PSR125-90-1250-PA66-BK
    Package Content 2pcs.
    Package Content packed in pack
    Thread type NPT
    Type PSR125-90-1250
    UV-Stabilised No
    Variant 90°-elbow
    Bore Diameter (Imperial) 1.30"
    Bore Diameter (metric) 33.0
    Length (L) 113mm
    Nominal ⌀ 1.25"
    Nominal ⌀ 40mm
    Outside ⌀ (OD) 60mm
    Outside ⌀ (OD) 2.36"
    Thread Length (TL) 16mm
    Thread Length (TL) (Imperial) 0.63"
    Thread Size (Imperial) 1-1/4 "
    clearance hole Diameter (Imperial) 1.649"
    clearance hole Diameter (Metric) 41.9mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    IP-Rating IP65
    Operating Temperature -40 °C to +120 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL-File Number E229161
    Country of Origin GB
    GTIN-13 / EAN 4031026463261
    Packaging 1 - Qty 2
    Packaging 1 - Type pack
    UNSPSC Key 39131708

    Solutions

    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...

    Wire conduits
