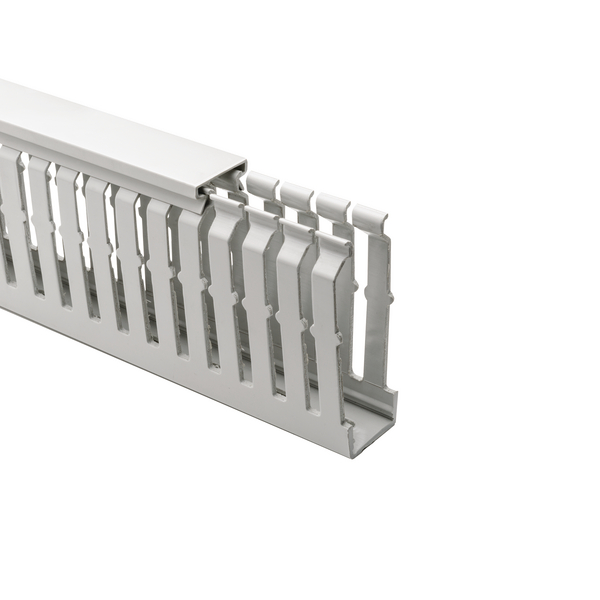

Wiring duct 25x75 mm, 2000 mm, PC/ABS, grey
Art.-Nr. 183-22575 | HTWD-HF-25X75-PC/ABS-GY Details

  • Excellent fire-safety characteristics
  • Narrow slots suitable for small-diameter wires
  • Smooth, burr-free edges protect installers from injury and wires from damage
  • Fingers can be removed with no sharp edges at pre-notched snap-off points
  • Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
  • Duct covers hold securely even in a vertical position and under vibration
  • Cover is flush with side of duct, allowing for tight, contiguous placement of duct
  • Base perforation according to DIN EN 50085
Show more

Request your individual offer now

Application HellermannTyton HTWD-HF halogen-free ducts are used wherever there are high demands on personal or material safety, such as public transport, tunnels, lifts and data processing centres. Note: Halogen-free PC+ABS is not resistant to all oils and greases.
Application Tool 4FTOOL
Colour Grey RAL 7035 (RAL7035)
Current leak stable Yes/No Yes
Fixation Method Screw Mounting
Material Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS)
Pack Cont. 36m
Package Content packed in box
PART DESCRIPTION HTWD-HF-25X75-PC/ABS-GY
Product Family HelaDuct HTWD-HF (DIN sizes)
Product Group HTWD Halogen Free Wiring Duct
Short Description Wiring duct 25x75 mm, 2000 mm, PC/ABS, grey
Type of side wall Slotted
Height (H) 75.0mm
Length (L) 2m
Suitable for cross section 1375mm²
Weight/Unit 0.34kg
Width (W) 25mm
Width (W2) 5.0mm
Width (W3) 7.5mm
CE Certification Yes
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -25 °C to +90 °C
Specifications
Specifications ANSI/UL 62275, EN 45545-2
UL Listed (US and Canada) No
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E357929
UV-Stabilised (Yes/No) No
Country of Origin DE
Customs Number 39259020
GTIN-13 / EAN 4031026297552
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 2.0m
Packaging 3 - Qty 36
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0612
Packaging 3 - Weight (kg) 13.24kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 864
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 338.76kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000012
ETIM 8.0 Key EC000012
ETIM 9.0 Key EC000012
UNSPSC Key 39131712
