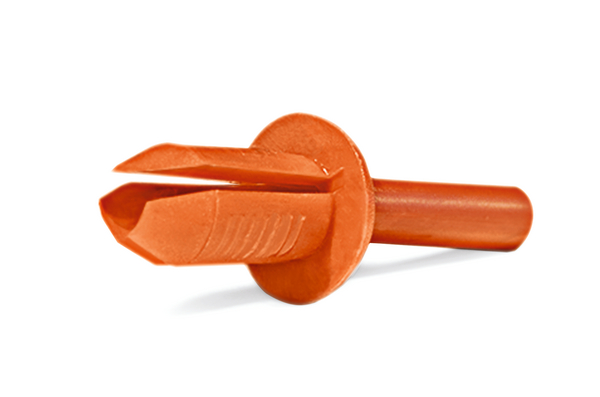

Accessory for HTWD-RT6, HelaDuct, orange, 500pcs. (HTWD-R6)
Art.-Nr. 181-42500 | HTWD-R6-PA6-OG Details

  • Very good mechanical properties
  • Good resistance to vibration
  • Easily and rapidly applied with HTWD-RT4 and HTWD-RT6 rivet tools
  • Colour-coded for easy identification for use with rivet tools

Request your individual offer now

Application HTWD-R4 and HTWD-R6 are used to rapidly mount and secure wiring ducts into fixing holes without the use of screws.
Colour Orange (OG)
Material Polyamide 6 (PA6)
PART DESCRIPTION HTWD-R6-PA6-OG
Pack Cont. 500pcs.
Package Content packed in pcs.
Product Family HelaDuct HTWD-R4 and HTWD-R6 rivets
Product Group For installing wiring ducts into fixing holes
Short Description Wiring duct rivet, 6.0 - 6.4 mm, PA6, orange
Type HTWD-R6

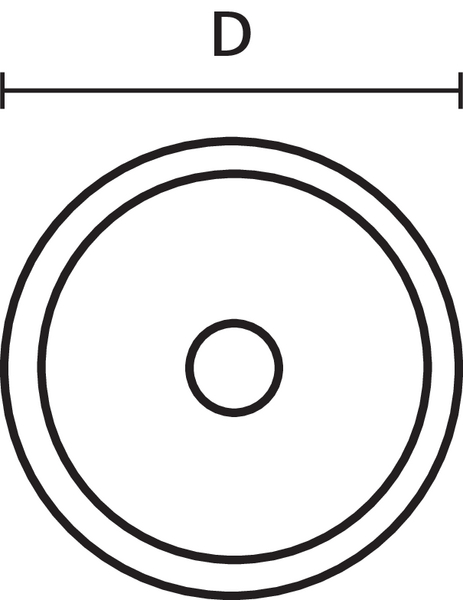

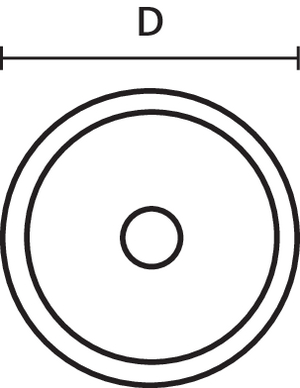

Diameter (D) 11.0mm
Height (H) 16.0mm
Height (H2) 14.0mm
Height (H3) 13.5mm
Weight/Unit 0.0017kg
for Hole ∅ (FH) 6.0 - 6.4 mm
for Panel Thickness min - max 1.5 - 6 mm
∅ (D2) 7.5mm
∅ (D3) 4.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +80 °C
ROHS compliant Yes
Specifications
Country of Origin IT
Customs Number 39269097
GTIN-13 / EAN 4031026567242
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.83m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01494
Packaging 1 - Weight (kg) 0.850001kg
Packaging 1 - Width (m) 0.2m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 360000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 633.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC002377
ETIM 8.0 Key EC002377
ETIM 9.0 Key EC002377
UNSPSC Key 39131712
