Megacanal System in ABS
Art.-Nr. 250-00283 | MCCBU-ABS-GY |  Details

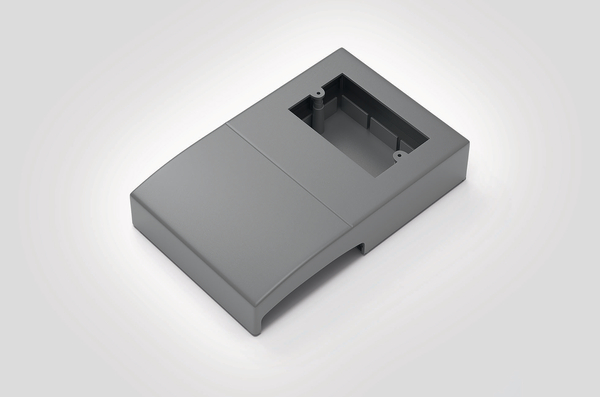

MCCBU grey universal housing box to fit one 4x2

    • Effective separation between power cables, data, pipelines, gas, compressed air, water and others;
    • Ideal for renovations, retrofits and new buildings;
    • Easy to sanitize, allowing its use in hospitals, clinics and laboratories;
    • Does not oxide, indicated for use in properties located in areas of sea air;
    • Highly resistant material, reinforcements for support are not needed.
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Application The universal housing box is used to fit one 4x2" compatible with most faceplates of this model in the market, allowing the installation of RJ45 outlets, power outlets and switches.
    Colour Grey (GY)
    Material Acrylonitrile Butadiene Styrene (ABS)
    Pack Cont. 1pc.
    Package Content packed in bag
    PART DESCRIPTION MCCBU-ABS-GY
    Product Family Megacanal System in ABS
    Product Group Acessory of wiring duct raceway system in self-extinguishing ABS
    Flammability UL 94 V0
    Operating Temperature -5 °C to +60 °C
    Country of Origin BR
    Customs Number 3925902000
    GTIN-13 / EAN 7890176093837
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131712
    Show all

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
