Wiring duct, 38.1x77.9mm, L=1.83m, grey, 18.3m

Art.-Nr. 181-15304

| SL1.5X3-PVC-GY

|

Strong fingers prevent unwanted breaking.

Pressure-sensitive, rubber-based adhesive backing aids in temporary positioning.

Package size

9.14 m

18.3 m

21.3 m

Add to watchlist

Request quote

Downloads

Base Data

Colour	Grey (GY)
Fixation Method	Non-Adhesive
Material	Polyvinylchloride - rigid extrusion grade (PVC)
PART DESCRIPTION	SL1.5X3-PVC-GY
Package Content	18.3m
Package Content packed in	carton
Type	SL1.5X3
UV-Stabilised	No

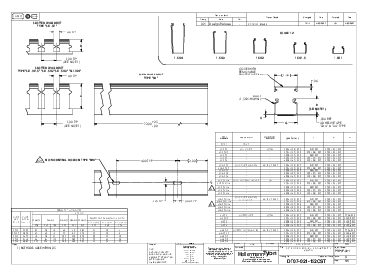

Product Dimensions

Fixing Hole Centres (F)	4.0"
Fixing Hole Centres (F)	101.6mm
Height (H)	77.9mm
Length (L)	1.83m
Width (W)	38.1mm
Width (W2)	38.1mm
Width (W3)	10.2mm
Width (W4)	25.4mm
Width (W4)	1.0"
Width (W5)	2.6"
Width (W5)	66.0mm

Specifications

CE Certification	Yes
CSA Certified	Yes
Flammability	UL 94 V0
Halogen-free	No
Operating Temperature	+50 °C
ROHS compliant	Yes
Self extinguishing	Yes
Specifications
Specifications	CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	Yes
UL-File Number	E64139

Logistics and Packaging

Country of Origin	US
GTIN-13 / EAN	4031026421209
Packaging 1 - Qty	10
Packaging 1 - Type	carton
Packaging 3 - Height (m)	0.2286m
Packaging 3 - Length (m)	1.8637m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.1353m³
Packaging 3 - Width (m)	0.3175m

More Information

ETIM 7.0 Key	EC000012
ETIM 8.0 Key	EC000012
ETIM 9.0 Key	EC000012
UNSPSC Key	39131712

Solutions

Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
