02/10/2025

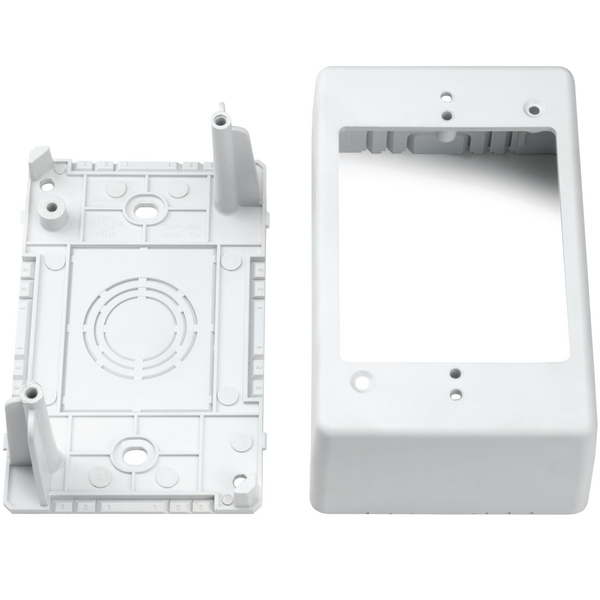

TSRP-JB1-PVC-WH
Art.-Nr. 250-60007 | TSRP-JB1-PVC-WH |

Copied
Rubber-based, foam-tape adhesive with high ultimate bond strength conforms to any surface.
UL listed for power up to 600 volts, meeting UL5A and CSA.22.2 Number 62-93 Standards.
TSRP rated boxes can be used for electrical or data outlets.
TSRP rated boxes can be used for electrical or data outlets.
TSRP rated boxes can be used for electrical or data outlets.
TSRP rated boxes can be used for electrical or data outlets.
TSRP rated boxes can be used for electrical or data outlets.
TSRP rated boxes can be used for electrical or data outlets.
Rubber-based foam tape adhesive with high ultimate-bond strength conforms to any surface.
Rubber-based foam tape adhesive with high ultimate-bond strength conforms to any surface.
Rubber-based foam tape adhesive with high ultimate-bond strength conforms to any surface.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour White (WH)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION TSRP-JB1-PVC-WH
    Package Content 1pc.
    Package Content packed in pack
    Type TSRP-JB1
    UV-Stabilised No
    Height (H) 31.75mm
    Length (L) 120.65mm
    Width (W) 76.2mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UL-File Number E211305
    Country of Origin US
    Customs Number 3925902000
    GTIN-13 / EAN 4031026721583
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 6.12kg
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131711

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
