TSRP3-6A-PVC-WH

Art.-Nr. 250-63600

| TSRP3-6A-PVC-WH

|

UL listed for power up to 600 volts, meeting UL5A and CSA.22.2 Number 62-93 Standards.

Add to watchlist

Request quote

Downloads

Base Data

Colour	Office White (OEWH)

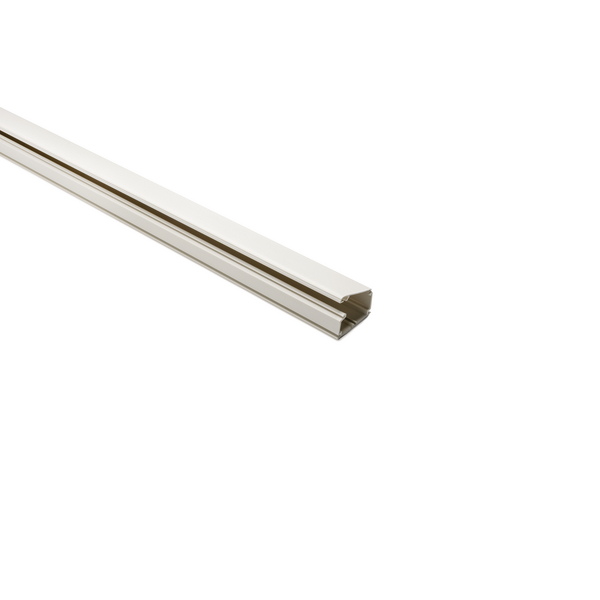

Description	HellermannTyton surface raceway systems are the ideal solution for routing communication and power cables. No need to break into existing walls - raceway systems are designed to route cable along wall surfaces. Made of a PVC material, components are durable and affordable; and the one piece construction and adhesive tape backing make positioning and mounting easy.
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	TSRP3-6A-PVC-WH
Package Content	36.6m
Package Content packed in	carton
Type	TSRP3-6A
UV-Stabilised	No

Product Dimensions

Height (H)	25.40mm
Length (L)	1.83m
Width (W)	44.45mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 V0
Halogen-free	No
Operating Temperature	+50 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	Yes
UL Listed (US)	Yes
UL Recognized (US and Canada)	No
UL Recognized (US)	No
UL-File Number	E192902

Logistics and Packaging

Country of Origin	US
Customs Number	3925902000
GTIN-13 / EAN	4031026722511
Packaging 1 - Qty	20
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.12065m
Packaging 3 - Length (m)	1.8447m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0724m³
Packaging 3 - Width (m)	0.3254375m

More Information

ETIM 7.0 Key	EC000059
ETIM 8.0 Key	EC000059
ETIM 9.0 Key	EC000059
UNSPSC Key	39131710
