11/05/2024

HelaClima system in white ABS
Art.-Nr. 250-13002 | UNAC6050-ABS-WH |  Details

Wiring Duct Union for air conditioning installation.

    • Ideal for protection and aesthetics in the installation of air conditioning;
    • made with thermoplastic and self-extinguishing material;
    • Impact resistant;
    • Meets NR18 - lower cost per installed point;
    • Reduced installation time;
    • Allows the installation of air conditioning in various environments;
    • Available in three wiring ducts models.
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Application The accessories for HelaClima wiring ducts facilitate the installation, eliminating cutout of the wiring ducts. They are used for protection and aesthetics in the installation of air conditioning system such as pipes, thermal insulation, drain and electric cables. They are available in three different sizes: 30x30mm, 60x50mm and 80x80mm.
    Colour White (WH)

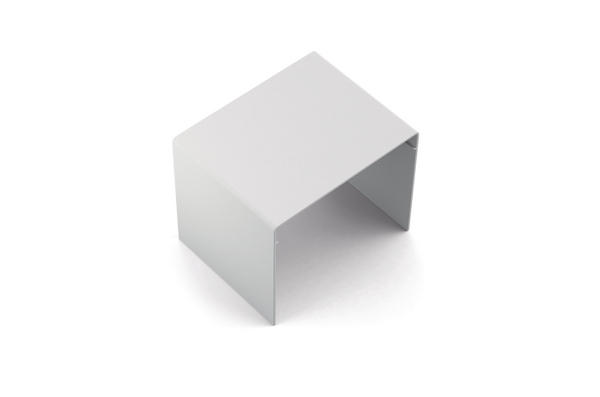

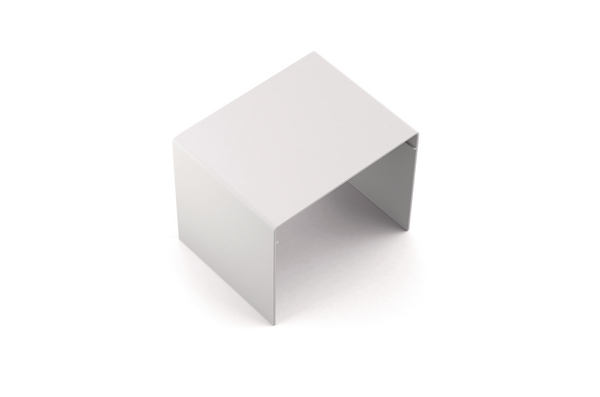

    Description Union for wiring ducts 60x50mm.
    Material Acrylonitrile Butadiene Styrene (ABS)
    Pack Cont. 1
    Package Content packed in bag
    PART DESCRIPTION UNAC6050-ABS-WH
    Product Family HelaClima system in white ABS
    Product Group Accessorie of air conditioning duct system in self-extinguishing rigid PVC
    Height (H) 51.4mm
    Length (L) 63.4mm
    Wall (WT) 1.5mm
    Width (W) 50.0mm
    Flammability UL 94 V0
    Country of Origin BR
    Customs Number 3925902000
    GTIN-13 / EAN 7890176097637
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131712
    Show all

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
