Cable protection conduits, sleeving and tubing for your application!
Cable conduits: Metallic, PVC, flexible, braided sleeving and spiral binding
Cable protection systems and accessories for every demand
No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Wire conduits have to meet these demands and also provide protection against dirt and dampness or resistance against extreme temperature loads. HellermannTyton does not compromise when it comes to cable protection.
From excellent flexibility, to high flame-retardant properties to exceptional mechanical protection, thick-walled or thin-walled, HellermannTyton guarantees the highest quality and safety in all cable protection areas. Wherever cable protection is needed, there are unique requirements. Whilst cable protection in plant and machinery construction requires high levels of mechanical impact resistance and abrasion resistance, a wire conduit or braided sleeving used in public buildings or in rolling-stock must meet the highest fire safety standards.
In addition to the outstanding material properties of the flexible cable protection conduits from HellermannTyton, customers and users of HellermannTyton cable protection products also benefit from system solutions. For each metallic or non-metallic cable conduit in the HelaGuard series, there are a number of accessories available, for example:
Whether construction or retrofitting, for example with braided sleeves that can be re-opened or closed, find the right cable protection solution for your application now.
Product highlight in the field of cable protection

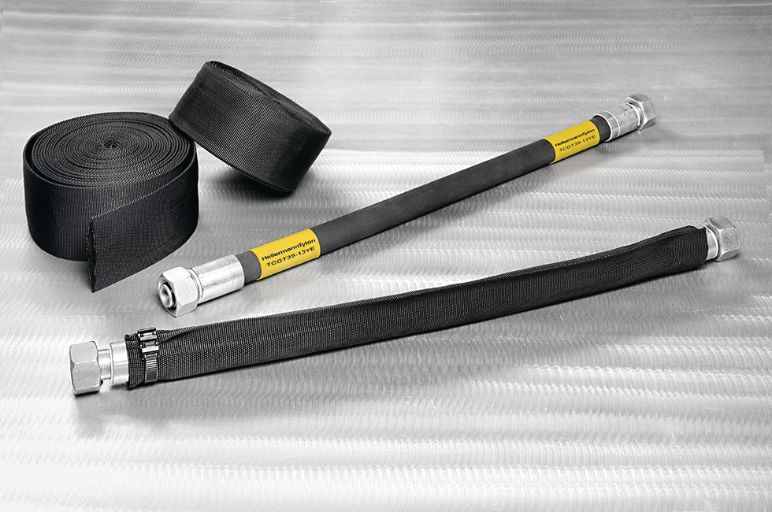

Burst Protection Sleeving for Hydraulic Hoses HEGWS
HEGWS is a highly abrasion and tear-resistant burst protection sleeve. HEGWS is used to protect hydraulic hoses and prevent injuries due to leaks emitting high-pressure liquid jets. HEGWS fullfils the standards of Earth Moving Machinery EN ISO 3457 and Mechanical Vibration and Shock EN 1299.
Cable protection tailored to your application!
The requirements in the field of cable protection are becoming increasingly complex. Wire conduits need a lot of features to protect cable bundles optimally under diverse conditions, e.g.:
- High resistance to corrosion
- High resistance against to and UV radiation
- Flame-resistant and self-extinguishing
HellermannTyton is a global manufacturer who offers high-performance cable fastening, connecting, routing, protecting, and identifying solutions to diverse markets. We develop market solutions that uniquely meet our customers' needs no matter what industry - solving a specific requirement, saving installation and component costs, and improving the quality of the end product:
HelaGuard flexible wire conduits and screwed connections
An comprehensive range of flexible protection conduits made of PA6, flame retardant PA6-FR, PA12 and PP, as well as the double-slit flexible conduit HG-DC suitable for retro-fitting. A complete range of IP66 and IP68/IP69k glands in a wide variety of shapes (straight, 90°, 45°, T, Y and flange), with fixed metric and PG threads, or alternatively with external or internal swivel brass threads. Fittings with strain relief and cable sealing are also available.
HelaGuard flexible metallic cable protection conduits and screwed connections
General purpose flexible conduits (galvanised steel and stainless steel SS316) with high compression, tensile and impact strength. Nickel plated brass and stainless steel (SS316) fittings (metric and PG) with fixed and external threads.
HelaGuard flexible conduits with plastic coating and fittings
Flexible metallic PVC conduits, PA6 and polyolefin (PO) covers and very strong compression, tensile and impact strength. Nickel plated brass IP54 fittings (metric and PG) as well as IP65 compression fittings (metric and PG) with excellent pull-off strength. Both versions in various shapes and with fixed or swivel threads.
HelaGuard flexible metallic cable protection conduits with liquid-tight cover (IP68, IP69k) and fittings
Flexible metallic conduits with smooth, UV-resistant PVC and thermoplastic rubber covers and high compression, tensile and impact strength. Nickel plated brass IP68/IP69 compression fittings (metric and PG) with excellent pull-off strength. The protective conduit systems are suitable for outdoor use.
HelaGuard metallic conduits with plastic coating and steel overbraid
Flexible metallic conduits with PVC cover and metallic overbraid for high abrasion resistance and EMC screening as well as high compression, tensile and impact strength. Nickel-plated brass IP54 fittings (metric and PG) as well as IP65 compression fittings (metric and PG) with excellent pull-strength strength and high electrical continuity with the metallic braid to provide excellent EMC properties.
HelaGuard metal conduits with steel overbraid and screwed connections
Flexible metallic protection conduits with metallic overbraids for excellent abrasion resistance and EMC screening as well as great compression, tensile and impact strength. Nickel plated brass fittings IP54 (metric and PG) with fixed and swivel threads.
HelaGuard PSR and PSRSC spiral-reinforced PVC conduits made and fittings
Extremely flexible PVC conduits with rigid-PVC spiral reinforcement with smooth inner bore (PSRSC conduits also with smooth outer cover). Fittings include straight and 90° PA66 fittings (IP66 and IP67), straight and 90° nickel-plated brass fittings (IP66, IP67, IP68 and IP69k) and straight and 90° stainless steel (AISI 316) fittings (IP66, IP67, IP68 and IP69k).
Accessories for HelaGuard flexible cable protection conduits
A wide assortment of clips, couplings, locknuts, sealing washers, endcaps and thread converters for use with HelaGuard cable protection conduits.
FlexiGuard flexible cable protection conduits and screwed connections
Highly flexible conduits made of high-grade PVC and a plastic-coated spring steel wire. IP54 fittings with metric and PG threads or alternatively with a mounting bracket. FlexiGuard is typically used to protect wires to switching equipment and in plant construction.
Cable protection conduits for extreme conditions
CTT NSA 935805 compliant PTFE protection conduits with excellent resistance to almost all chemicals as well as to low and high temperatures, very good tensile strength and very good fatigue life. The CTT conduits made of PTFE protect wires from extreme temperatures, fire, moisture, corrosion, vibration and abrasion.
The Helawrap cable protection system is the ideal solution for bundling and protecting cables and wires. The Helawrap applicator tool enables the user to bundle cables rapidly and effortlessly. Thanks to the Helawrap accessories, Helawrap tubing can be fixed on tables and cupboards.
Cable protection spiral binding
Cable protection spiral binding is used to organise and protect wires and hoses. HellermannTyton spiral binding is available in a wide range of diameters, colours and materials.
Cable protection wiring ducts are used in wiring panels and switching systems. HellermannTyton offers rigid protection ducts made of PVC as well as from halogen-free PC/ABS. Furthermore, accessories for fixing ducts and DIN-Rails are available.
Rigid conduits are used in wiring panels and switching systems. HellermannTyton offers cable trays made of PVC as well as from halogen-free PC/ABS. Furthermore, accessories for fixing ducts and DIN-Rails are available.
Cable protection braided sleeving made from Polyamide 6.6 (PA66) and Polyester (PET, PBT), also combined with tin-platted copper for EMI-shielding, protects wires from abrasion. Helahook fabric protection tubing hook-and-loop seal can be retro-fitted and re-opened and closed repeatedly. The self-closing cable protection sleeve Helagaine Twist-In is ideal abrasion protection even on pre-installed components.
EdgeGuard PVC edge protection strip used on straight sharp edges. Flexiform edge protection strip is made from Polyethylene (PE), Polyamide (PA) or Polytetrafluoroethylene (PTFE) and is used to protect cables routed through sharp-edged cut-out sections.
Bend protection grommets, edge protection grommets, strain relief grommets, push-on caps and elbow grommets for a large variety of diameters and purposes.
HelaGuard flexible cable protection conduits and fittings
Non-Metallic Cable Protection Conduit HG-SW PA6 Standard
The HG-SW cable protection conduit provides very good resistance to abrasion, compression and impact, is highly flexible and has high fatigue-life. It is also very resistant to solvents and oils and is free of halogen, sulphur and phosphorous.
Machine building, plant construction, control panels, public buildings.
Non-Metallic Cable Protection Conduit HG-LW PA6 Light Weight
The HG-LW cable protection conduit is light weight and very fleixble with a small bending radius. It provides good resistance to abrasion, compression and impact, is highly flexible and has high fatigue-life. It is also very resistant to solvents and oils and is free of halogen, sulphur and phosphorous.
Machine building, plant construction, control panels and public buildings, wherever lower mechanical protection is required.
Non-Metallic Cable Protection Conduit HG-FR PA6 Flame Retardant
The HG-FR cable protection conduit is highly flame-retardant, has low smoke and toxicity, is highly flexible and has high fatigue-life. The cable protection conduit is also resistant to abrasion, compression and impact. It is also very resistant to solvents and oils and is free of halogen, sulphur and phosphorous.
Railway vehicles, railway tunnels, underground stations and public buildings, where high fire protection is required.
Non-Metallic Cable Protection Conduit HG-DC Double Slit
The HG-DC cable protection conduit can be open and closed repeated and offers excellent abrasion resistance. Cables are easily inserted laterally. The cable protection conduit is resistant to abrasion, compression and impact. It is also very resistant to solvents and oils and is free of halogen, sulphur and phosphorous.
Control panels, machine building, plant construction and wherever retrofitting is a requirement.
Metallic cable protection conduits Galvanised steel cable protection conduit SC
The SC galvanised steel cable protection conduit offers very high compression, impact and tensile strength and is very flexible.
Underfloor wiring in offices, data cabling, protection of hydraulic or pneumatic conduits. For high mechanical protection.
Metallic cable protection conduits Stainless steel cable protection conduit SC
The SSC stainless steel cable protection conduit is highly resistant to rust and corrosion, is flexible and offers very high compression, impact and tensile strength.
Protection of sensor cables, instrumentation tubing, hydraulic and pneumatic conduits, particularly in corrosive environments. Commonly used in hospitals and clinics.
Metallic cable protection conduits with plastic coating PCS galvanised steel cable protection conduit with PVC cover
The PCS galvanised steel cable protection conduit with PVC cover offers very high compression, impact and tensile strength, is very flexible and is resistant to alkalis, acids and chemicals.
Commonly used in machines and plants.

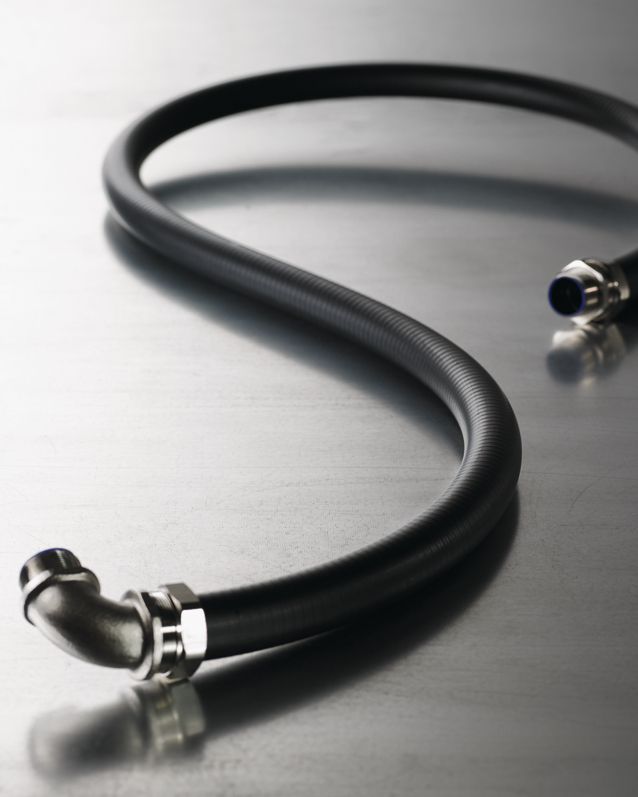

Metallic cable protection conduits with smooth, liquid-tight plastic cover LTS galvanised steel cable protection conduit with PVC cover
The LTS galvanised steel cable protection conduit with smooth, liquid-tight PVC cover (IP68, IP69 with LTS fittings) offers very high compression, impact and tensile strength, good flexibility and is resistant to oils, greases, acids and chemicals. It is UV-resistant and suitable for outdoor use.
Machine tools or outdoor installations, wherever liquid-tight (IP68) is a requirement.
Metallic cable protection conduits with plastic coating and metallic overbraid PCSB galvanised steel cable protection conduit with PVC cover and galvanised steel overbraid
The PCSB galvanised steel cable protection conduit with PVC cover and galvanised steel overbraid offers excellent abrasion resistance and EMC screening. It is also very flexible and offers very high compression, impact and tensile strength.
Industrial environments where higher abrasion resistance or EMC screening are required.

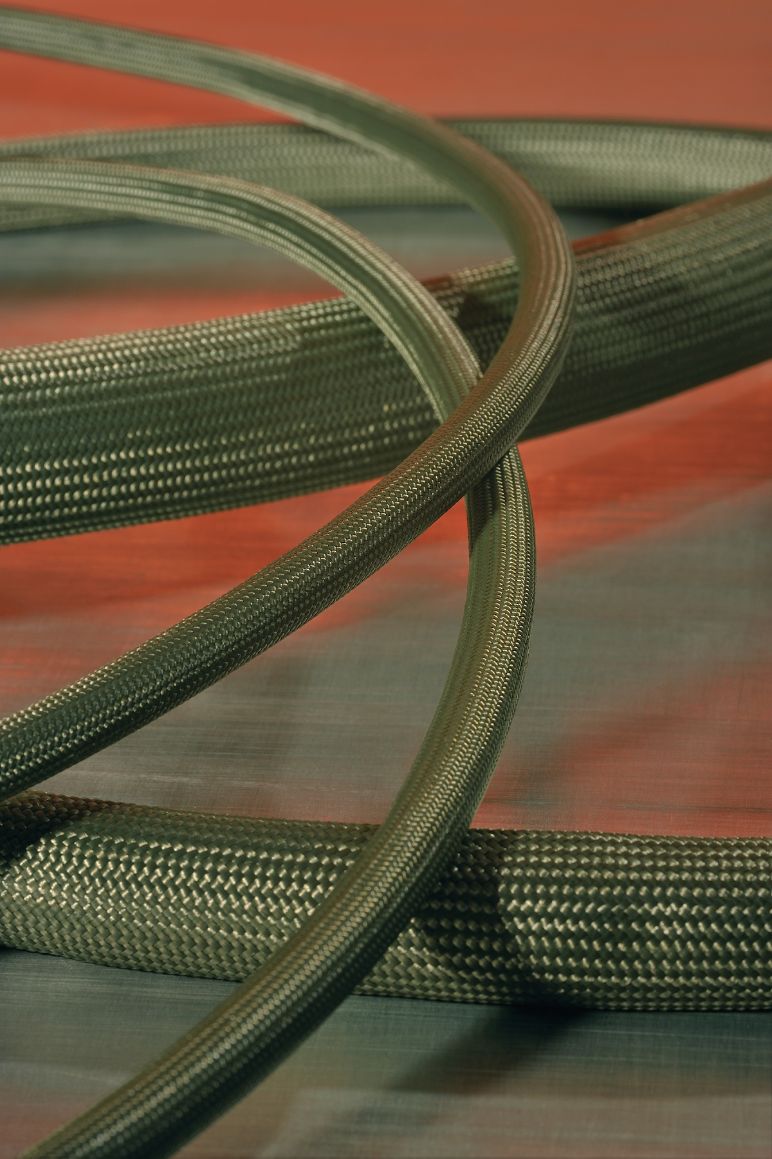

Cable Protection Braided Sleeving
Helagaine HEGMAN and HEGMANWO cable protection braided sleeving
The cable protection braided sleeving HEGMAN and HEGMANWO are made of meta-aramid NOMEX®. The are flexible and their high expanision rate allows for easy installation even over long lengths and connectors.
The cable protection braided sleeving HEGMAN and HEGMANWO offer optimal mechanical protection for harnesses and can withstand the most severe environments. They protect cables and wires from abrasion, high temperatures and flames.
Self-closing, woven cable protection tubing HelaGaine Twist-In
The woven cable protection tube Helagaine Twist-In is a self-closing sleeve manufactured form polyester monofilaments. The self-wrapping feature allows for easy, quick installation and removal of the sleeving even on enclosed components and cables. The cable protection tube Helagaine Twist-In gives quick and easy access to cables and wires for inspection, maintenance and assembly at any time. Helagaine Twist-In covers a wide range of applications and diameters with a small range of sizes.
The cable protection tubing Twist-In has many applications in engineering, electronics and electrical installations.
Standard polyester cable protection braided sleeving HelaGaine HEGP
Helagaine HEGP braided sleeving offers flexible cable protection, high abrasion resistance and ease of application. Helagaine braided sleeves are specially woven to expand when compressed and contract when pulled.
HEGP provides a high level of surface coverage as well as a high rate of expansion for easy slip-over application. To achieve an optimal fit, HEGP braided sleeving is available in 13 different sizes for application diameters from 1mm to 66mm.
Helagaine HEGP braided sleeving is used in the automotive industry and in machine construction. These cable protection tubes are also used for smaller electrical appliances to avoid pockets of high temperature.
Cable protection braided sleeving HelaGaine HEGEMIPV0
Made of tin-plated copper and polyester threads, Helagaine HEGEMIP and HEGEMIPV0 cable protection sleeving braided sleeving offer electromagnetic (EMC) protection as well as secure cable bundling. The mix of materials makes the cable protection sleeving expandable and easy to apply. In contrast to purely copper braids, the HEGEMIP and HEGEMIPV0 sleeves can be bent and twisted and still return to their original form. As a result, HEGEMIP and HEGEMIPV0 are particularly suitable for applications where there is movement.
The supporting inner tube makes insertion of cables easier and protects the sleeves from deformation during transport. Besides their excellent electromagnetic protection ratings, they are very resistant to abrasion. Both sleeves fulfil the requirements of the international EMI norm CISPR25 (10KHz to 1GHz).
Helagaine HEGEMIPV0 cable protection braided sleeving is used to protect highly sensitive electronics in industries where fire protection is important, such as mass transit, aerospace and military industries.
Further cable protection tubes
SPS-series cable protection spiral binding
SPS cable protection spiral binding is very robust and offers very good protection against mechanical stress and oils. Additionally SPS spiral binding is very abrasion resistant. SPS is available with much larger diameters (up to 50 mm) than other spiral binding and is ideal for larger cable bundles.
SPS cable protection spiral binding is especially suitable for use in areas where high abrasion resistance and much larger cable diameters are needed, for example the automobile and petrochemical industries as well as in heavy plant construction.
Edge protection for sharp-edged cut-out sections
Flexiform edge protection is applied to the panel edge and is easily installed without the need for adhesives. The close-fitting profile protects cables effective by preventing chafing.
Flexiform edge protection is used to protect cables routed through sharp-edged cut-out sections.
Flexible Cable Support, Heladuct Flex
The Heladuct Flex flexible cable supports are a space-saving wiring system which holds the routed cable clearly open to view. Cables can be routed in or out over the whole length of the support. The supports can be rapidly mounted either with screws or an adhesive strip. The high-quality foam bonding layer smooths over irregularities in the underlying surface and works particularly well on powder-coated surfaces. Due to their flexibility, it is possible to install the supports at angles of 90° and higher.
Heladuct Flex flexible cable supports are commonly used in switching cabinets. They are also used in the furniture industry, where cables need to be routed rapidly and attractively. HF RoHS UL
Helawrap HWPP flexible cable protection tubing
Helawrap cable protection tubing is the ideal solution for bundling and protecting cables in industrial as well as in home or office environments.
Due to its special profile and handy applicator tool, Helawrap cable protection tubing can be applied rapidly and effortlessly. The unique design allows the user to branch off cable at any point along the cover with ease. Helawrap can also be removed and re-applied as often as required. Helawrap cable protetion tubing is available in several colours, a large range of sizes covering most standard applications and in two durable materials. A handy applicator tool is always included.
Helawrap cable protection tubing is used to bundle and protect cables in the electrical industry, panel building, machine, automotive and truck manufacturing. Helawrap in 25m lengths is the time-saving solution for industrial applications. Due to its excellent flame-retardant properties, Helawrap Polyamide 6 V0 is the product of choice wherever fire protection is essential, for example in mass transit.
Helawrap cable protection tubing in practical 2m lengths is designed for domestic and office use. It puts an end to the cable chaos associated with PCs, TVs and Hi-Fi systems.
