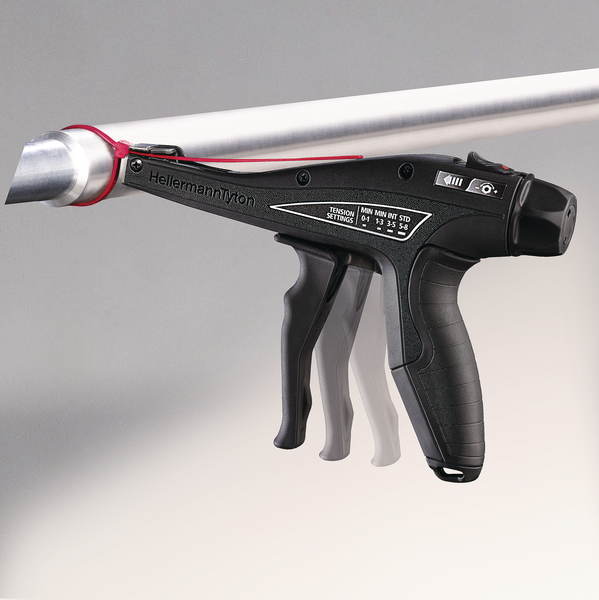

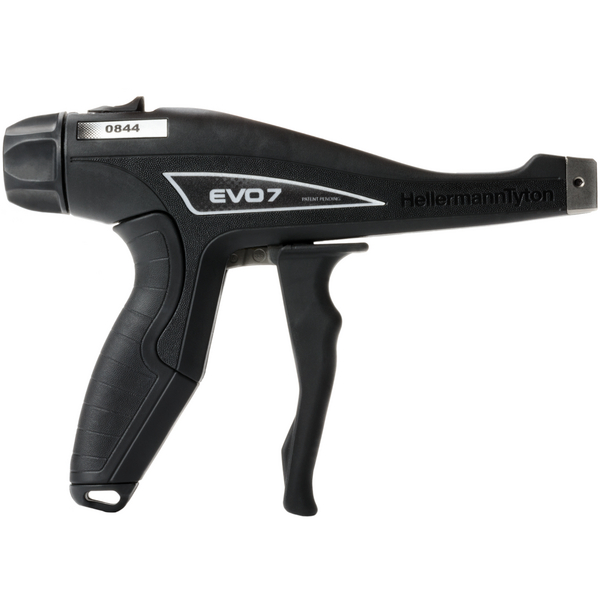

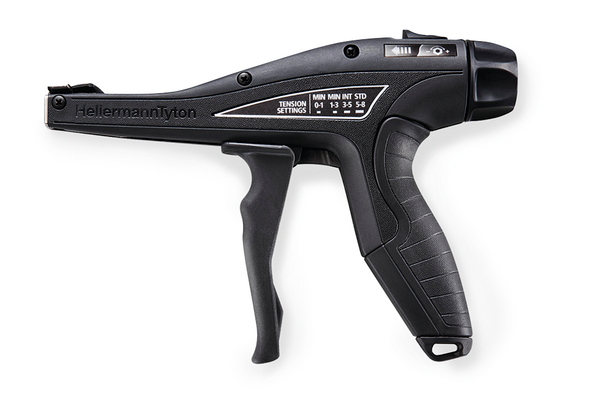

Manual Tensioning Tool for Plastic Ties up to 4.8 mm strap width
Art.-No. 110-70083 | EVO7-MET/PL-BK Details

  • Ergonomic, slip-proof handle for a comfortable and secure grip
  • Extremely low-maintenance
  • Fast and precise application with minimum effort (TLC mechanism)
  • Convenient and simple tension adjustment

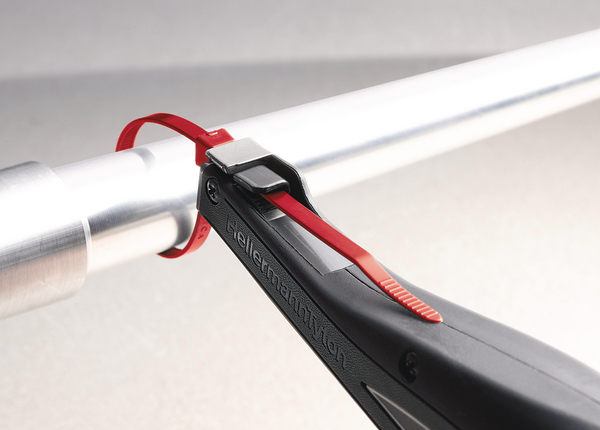

  • Extended, slim nose for use in narrow spaces
  • Housing made of resilient and lightweight glass fibre-reinforced polyester
  • Standard grip span (90 mm) and short grip span (80 mm) available
Show more

Request your individual offer now

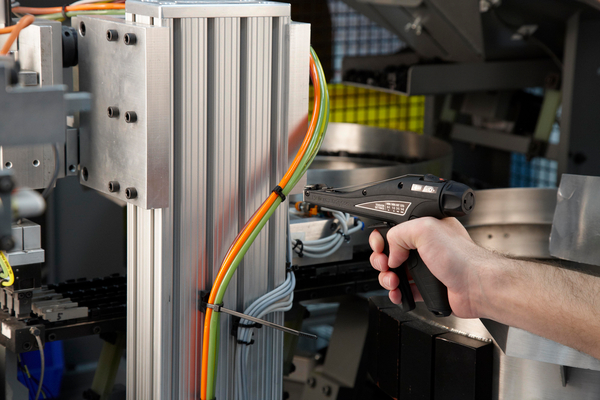

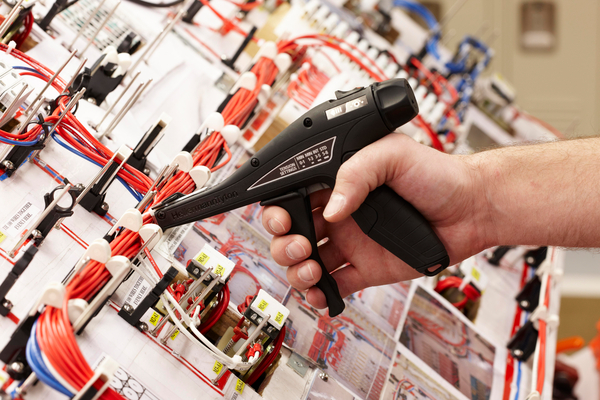

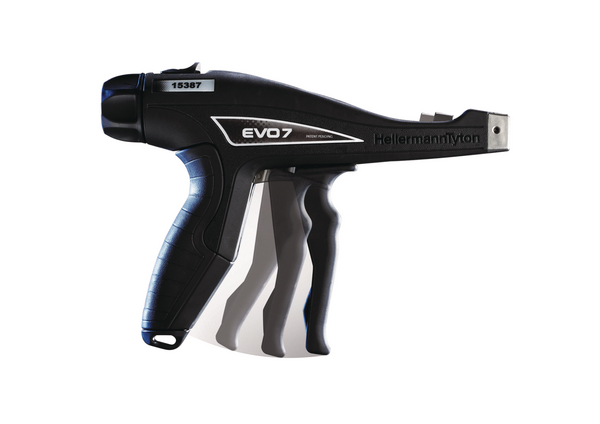

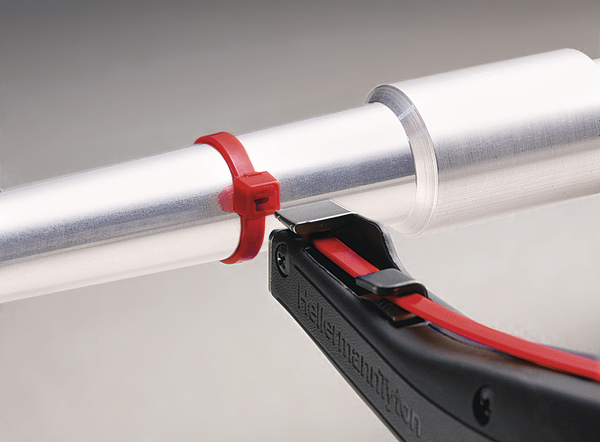

Application EVO 7 delivers precise tensioning and cut-off of HellermannTyton cable ties while reducing work related risks to quality, productivity and employee safety. For use in OEM applications (ie; Truck and Heavy Equipment, White Goods, Automotive), wire harness assembly and control panel building.
Colour Black (BK)
For Cable Tie Width 2.5-4.8mm
For Ties T18, T30, T40, T50, T80, IT18, IT50
Material Metal (MET), Plastic (PL)
Operation manual
Pack Content 1pc.
Package Content packed in carton
PART DESCRIPTION EVO7-MET/PL-BK
Product Family EVO7
Product Group Manual Processing Tools
Tool property Manual clipping
Tool suitable cable tie material Plastic
Max. Tie Width (G) 4.8mm
Strap Width max. (G) 0.19"
Tension Setting Adjustable
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Nato number 5120-12-409-3857, 5120-00-781-7891
Specifications
Specifications CAGE Code 53421
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
US Gov. Designation MS90387-1, SAE-AS90387
UV-Stabilised (Yes/No) No
GTIN-13 / EAN 4031026438535
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.235m
Packaging 1 - Qty 1
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00239
Packaging 1 - Weight (kg) 0.78kg
Packaging 1 - Width (m) 0.185m
Packaging 3 - Weight (kg) 12.28kg
UNSPSC Key 27112410
