Cable tie mount for screw fixation, Wmax=5.0mm, ⌀4.3 mm, M4 Screw, natural, 100pcs.


Art.-No. 151-00539

| CTAM1-PA66-NA

 |

Copied

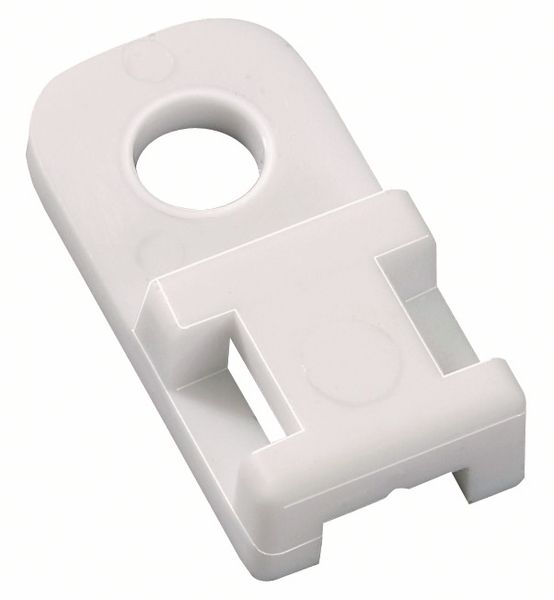

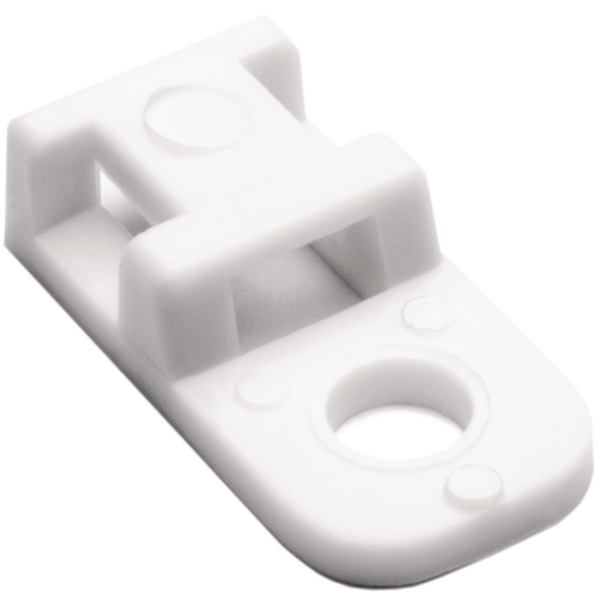

CTAM mounts for applications with limited space.

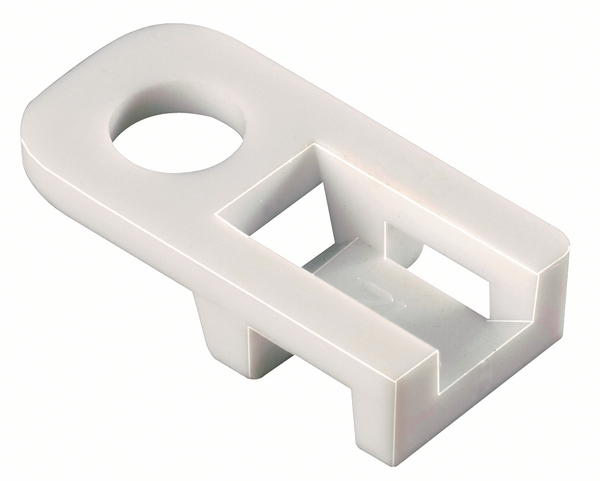

CTAM mounts for applications with limited space.

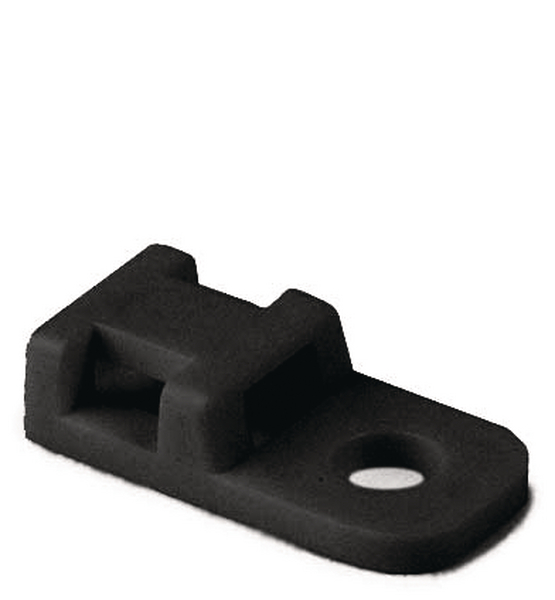

CTAM mounts for applications with limited space.

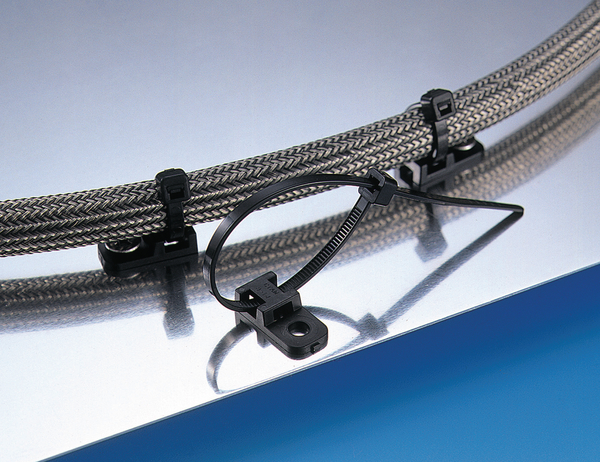

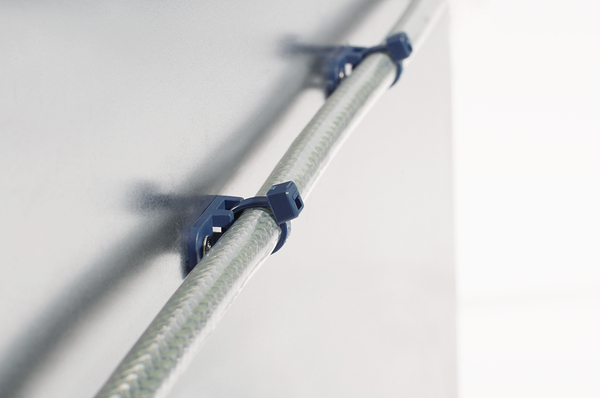

Detectable fixing solution containing of MCCTAM1 mount and MCTS cable tie.

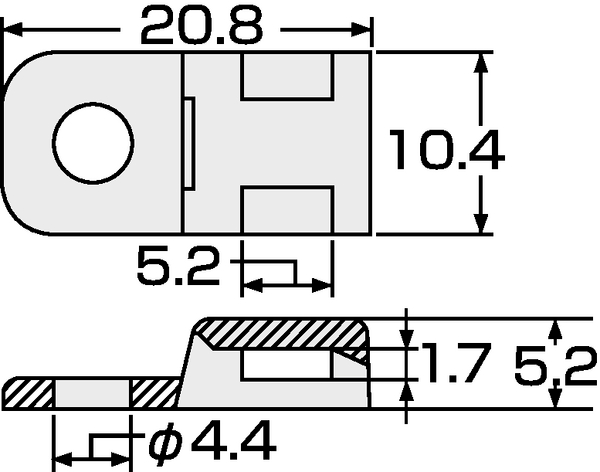

Cable Tie Mounts CTAM.

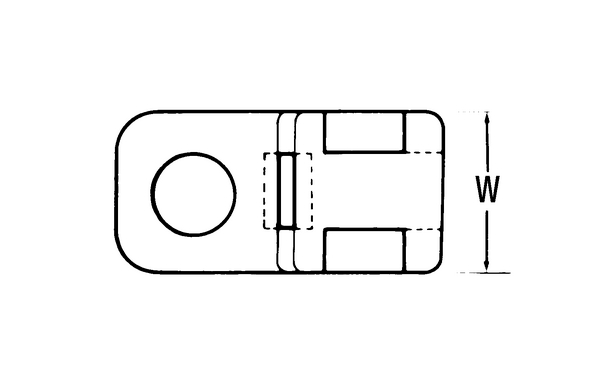

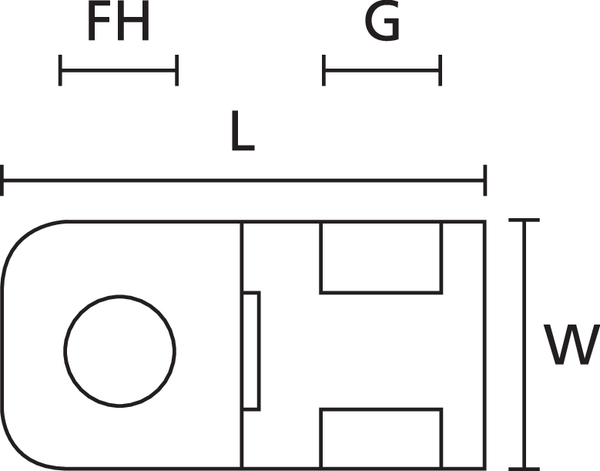

CTAM-Series (plan view)

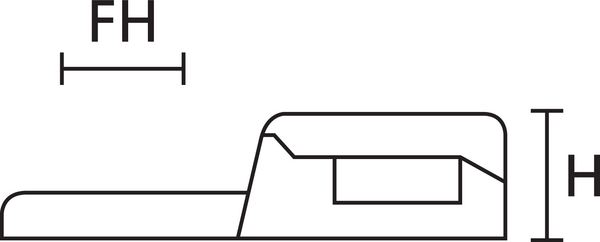

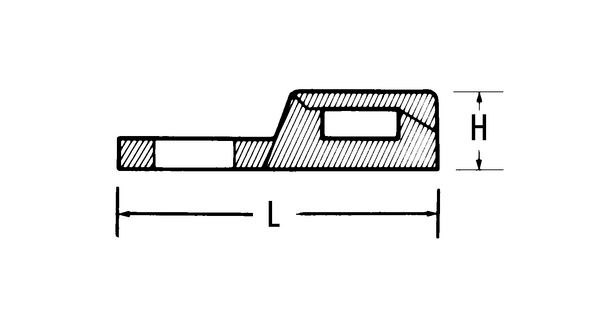

CTAM-Series (side view)

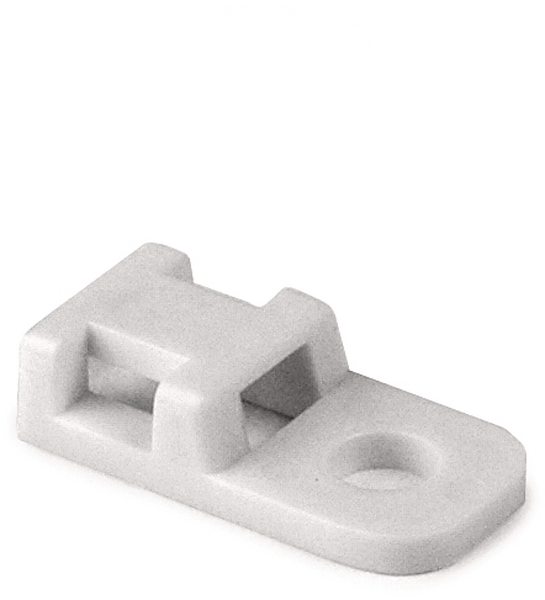

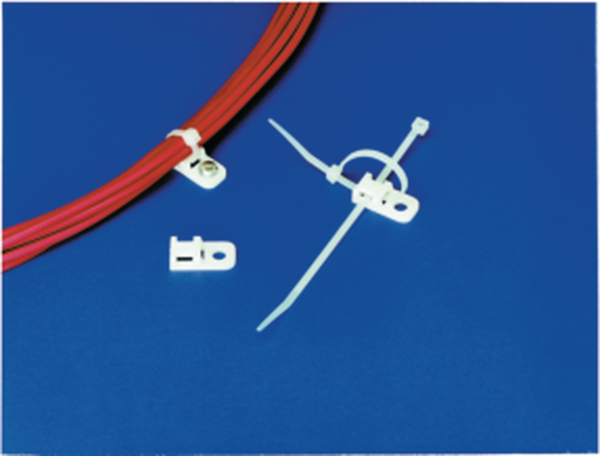

CTAM mounts for applications with limited space.
CTAM mounts for applications with limited space.
Cable Tie Mounts CTAM.

    • Suitable for applications with minimal space
    • Mounted before cable installation and in line with cable
    • CTAM has 4-way entry design for use in line or at 90° angle to cable run
    Add to watchlist
    Request quote
    Downloads
    Application Each of these products offers particular benefits, but all are designed for simple yet robust installation in a wide variety of applications. Particularly used in telecoms equipment, switchgear and control cabinets these cable tie mounts are also used within the aerospace and railway industry.
    Colour Natural (NA)
    Fixation Method Screw Mounting and Rivet
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION CTAM1-PA66-NA
    Package Content 100pcs.
    Package Content packed in bag
    Product Family CTAM-Series for applications where space is limited
    Product Group Screw fixing mounts
    Type CTAM1
    Height (H) 5.1mm
    Height (H2) 1.8mm
    Length (L) 20.5mm
    Strap Width max. (G) 0.2
    Strap Width max. (G) 5.0mm
    Width (W) 10.2mm
    for Hole ⌀ (FH) 4.3 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
    Specifications ANSI/UL 1565, ANSI/UL 62275
    UL File link Link
    UL Recognized (US) Yes
    UL-File Number E64962
    GTIN-13 / EAN 4944387304701
    UNSPSC Key 31162305
