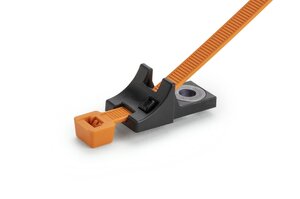

Fixing tie for screw fixation, inside serrated, Ø5.0-105.0mm, black
Art.-No. 156-00980 | T120ROSHDMP6SET-PA66HS/PA66W-BK | Details

These HDM (Heavy duty mount) are suitable for assembling on screws.

Cable tie head can be moved after bundling
Secure alignment to the bundle due to H-design
Withstands vibrations and displacement forces
High tightening torque through metal bushing
Also available with mounting screw type M8

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

2-Piece Fixing Ties for Heavy Duty Applications, for Screws >

Base Data
Product Dimensions

Base Data

Application	These cable ties and heavy duty mounts (HDM) are used where a robust, secure and durable bundling is requestet and eliminates the needs for multiple sized fix diameter clamps.
Application Tool	ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Colour	Black (BK)
Content	1000 T120ROS + 1000 HDMP6
Fixation Method	Fixing hole
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, UV-resistant (PA66W)
Mounting Screw Type	M6 Screw
Package Content packed in	box
PART DESCRIPTION	T120ROSHDMP6SET-PA66HS/PA66W-BK
Product Family	HDM-Series
Product Group	2-Piece Fixing Ties for Heavy Duty Applications, for Screws
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Variant	Inside Serrated

Product Dimensions

Bundle Diameter max (metric)	105.0mm
Bundle ∅ min.	5.0mm
Height (H)	16.0mm
Length (L)	385.0mm
Length (L2)	37.5mm
Min.Tensile Strength	535N
Width (W)	7.6mm
Width (W2)	20.0mm

Specifications

ELV compliant (Article 4 - 2)	YES
EN 45545-2 Results Foot Part	R22 HL2, R23 HL2
Hazardous Goods	No
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026450834

More Information

UNSPSC Key

39121731
