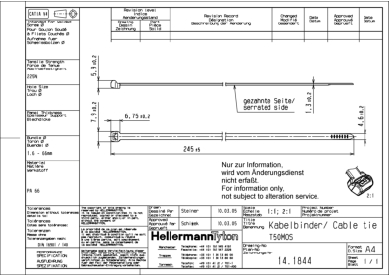

Cable tie outside serrated, 245.0x4.6mm, ⌀1.6-66.0mm, black, 100pcs.
Art.-No. 118-00018
| T50MOS-PA66HS-BK
|
Copied
- Outside serrated cable tie with smooth surface to the bundle
- Tie follows the contours of the cable bundle perfectly
- Takes up less space due to curved head design
- Easy insertion combined with high tensile strength
- PA46 material for higher temperatures up to +195 °C (500 h)
- PA66V0 cable ties fulfill Limited Fire Hazard requirements
- Easy application either manually or with a processing tool
Show more
Show less
Request quote
More products in this product group:
| Application | OS-Series cable ties are used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and electrical industry. |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50MOS-PA66HS-BK |
| Package Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | OS-Series |
| Product Group | Cable ties for thin-walled bundles |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50MOS |
| Variant | Outside Serrated |
| ELV compliant (Article 4 - 2) | Yes |
| EPD File Link | Link |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| GTIN-13 / EAN | 5022660181702 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.38m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0014725m³ |
| Packaging 1 - Weight (kg) | 0.15461kg |
| Packaging 1 - Width (m) | 0.155m |
| Packaging 3 - Height (m) | 0.192m |
| Packaging 3 - Length (m) | 0.586m |
| Packaging 3 - Qty | 6000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0439m³ |
| Packaging 3 - Weight (kg) | 10.606kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 120000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 233.12kg |
| Packaging 4 - Width (m) | 0.8m |
